Prosight Universal Paperless Recorder – Up to 16 Channels, High Accuracy

Prosight Universal Paperless Recorder – Up to 16 Channels, High Accuracy

From $1,450.00Sale Price
Channels (1-16)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Relay Outputs
None
Relay Output
Pulse (flow, Rain) / Function Module
None
Pulse/ Function Module
Transmitter (4-20mA)/Comms Module (Ethernet,RS485)
None
Transmitter / Comms Module
Quantity

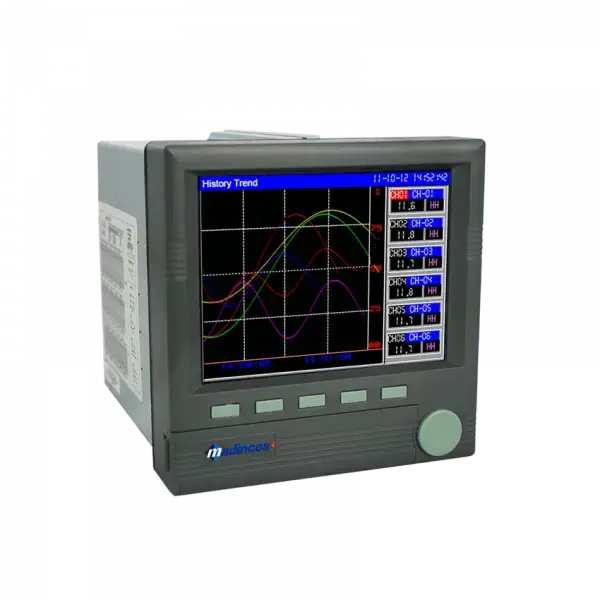

High-accuracy universal paperless recorder with up to 16 channels. Large 5.6” TFT display, Modbus communication, and flexible inputs for temperature, pressure, flow, and vibration monitoring.

  • This universal color paperless recorder is a high-performance and flexible solution for process measurement and monitoring in industrial environments. With support for up to 16 channels and a clear 5.6’’ TFT color display, it is designed for recording temperature, humidity, pressure, flow, vibration, and other critical parameters.

    Key Features

    • High Accuracy Measurement: ±(0.2%FS + 1 digit) with sharp 5.6’’ TFT color display.

    • Universal Inputs: Compatible with thermocouples (T.C.), RTDs, mA, and VDC signals.

    • Scalable Channels: Configurable from 1 to 16 channels, making it ideal for single-point or multi-point monitoring.

    • Built-in Compensation: Automatic cold junction compensation for thermocouples.

    • Flexible Outputs: 4–20mA, relay outputs, and 24VDC auxiliary power supply.

    • Industrial Connectivity: RS485 with Modbus-RTU protocol for integration with HMI, SCADA, or OPC systems.

    • Advanced Functions: Flow totalization with temperature/pressure compensation, plus math functions (+, –, ×, ÷, average, max, min).

    • Multiple Display Options: Curves, bar graphs, and digital display modes.

    • Data Management: Powerful PC software for visualization, exporting to Excel, and printing.

    • Wide Power Supply Range: Operates on 100–240VAC for industrial reliability.

    Applications

    • Multi-point industrial process monitoring

    • Flow and pressure systems

    • Environmental and building management

    • Laboratory recording and QA analysis

    • Vibration and machine diagnostics

  • Category Specification
    Inputs
    Input Channels 1–16 (independent, photoelectric isolation)
    Input Types Thermocouple (T.C.), RTD, mA, VDC, mV, Frequency (0–5kHz)
    Accuracy ±(0.2%FS +1 digit)
    Resolution 0.1°C (when in temperature mode)
    Sample Rate 1 second per 8 channels
    Decimal Point 0–4 programmable
    Isolation Channel-to-GND: 1000VAC, Channel-to-Channel: 400VAC
    Cold Junction Compensation Built-in auto compensation (±1°C)
    Temperature Shift 50PPM
    CMR Ratio 85–110dB
    RTD Wire Resistance <10Ω (per wire)
    RTD Excitation max1000Ω per wire, should be same per wire
    Inner CPU 32-bit ARM, high performance
    Hardware Watchdog CPU inner integration for long-term stability
    Supported Sensors
    RTD Pt100 (–200 to 600°C), Cu50 (–50 to 150°C), Cu100 (–50 to 150°C)
    Thermocouple K (–50 to 1300°C), J (0 to 1000°C), T (–200 to 350°C), E (0 to 800°C), R (–50 to 1700°C), S (–50 to 1700°C), B (0 to 1800°C), N (0 to 1300°C)
    Analog Inputs 4–20mA, 0–10mA, 0–5VDC, 1–5VDC, 0–60mV, 0–100mV
    Input Impedance RTD/T.C.: >20MΩ, mA: 250–500Ω, V: 500kΩ+
    Memory & Data Handling
    Memory Capacity 45 days × record interval × channels
    Record Interval 1–3600 seconds, programmable
    Storage Type NOR Flash
    External Media 2GB / 16GB USB (plug & play)
    Data File Format Year/Month/Day (.dat)
    Transfer Size 8MB (all data transferred)
    File Management Oldest files automatically replaced
    Export PC software, Excel, printing
    Display
    Display 5.6” Color TFT LCD
    Resolution 320 × 240 pixels
    Display Types Digit, curve, bar graph, chart
    Interval Time 1–3600 seconds, programmable
    Backlight Lifespan 50,000 hours
    Screensaver 0–30,000 seconds programmable
    Engineering Units °C, %, psi, bar, m³/h, ppm (programmable)
    Resolution 32-bit A/D, 16-bit final
    Data Resolution 5 digits; Flow totalization up to 11 digits
    Outputs (Optional)
    Relay Outputs Max 16, programmable
    Retransmission Max 6, programmable
    Communication RS485, RS232, Modbus-RTU
    Printing RS232 printer port
    Flow Totalize With temperature/pressure compensation
    Math Functions +, –, ×, ÷, min, max, average
    Power & Construction
    Power Supply 100–240VAC, 47–63Hz
    Power Consumption Max 20VA (20W)
    Insulation >1500VAC (to ground and housing)
    Case Material Metal with face and bezel
    Mounting Panel flush
    Size & Weight 144 × 144 × 180 mm; 2.0 kg
    Operating Conditions 0–50°C; 10–85% RH (no dew)

    •
