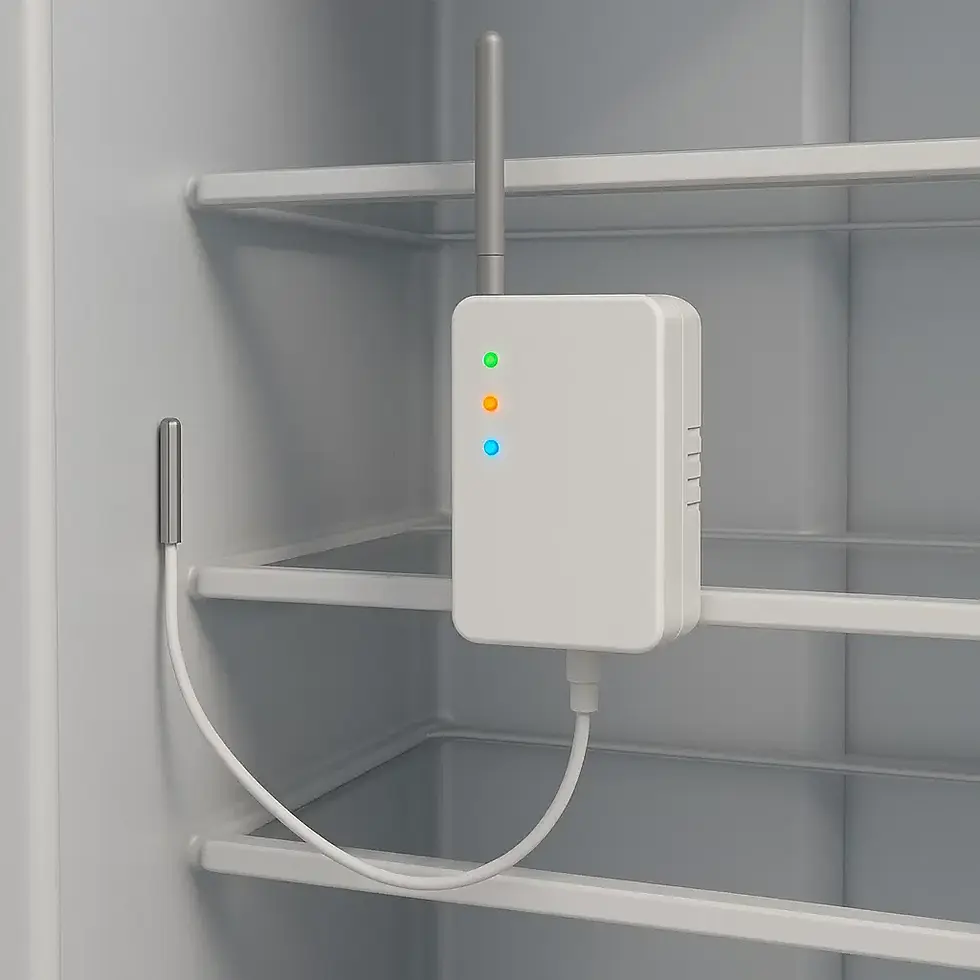

LoRaWAN Wireless Fridge & Freezer Monitoring Sensor with Internal & External Pro

The LoRaWAN Fridge Monitoring Sensor is purpose-built for pharmacies, hospitals, food safety, and laboratories that require precise, reliable cold storage monitoring. It combines a built-in temperature sensor for ambient cabinet monitoring with an external probe for accurate fridge and freezer readings.

With long-range LoRaWAN connectivity, the device transmits real-time temperature data securely to your monitoring platform. The built-in data logging function ensures no readings are lost, even during temporary network outages. Remote configuration and firmware upgrades make it flexible and future-proof.

Powered by a 2400mAh battery with up to 10 years of life, this compact sensor provides long-term peace of mind while reducing maintenance. It’s ideal for ensuring compliance with HACCP, GSP, GDP, and vaccine cold chain requirements.

Applications:

• Vaccine and medical fridge monitoring

• Hospital and pharmacy cold storage

• Laboratory and research storage

• Food & beverage cold chain compliance

• Commercial refrigeration systems

LoRaWAN & Power

• Protocol: LoRaWAN Class A

• Remote configuration via downlink

• Firmware upgradeable via program port

• Battery: 2400mAh, up to 10 years use

Internal Temperature Sensor

• Resolution: 0.01 °C

• Accuracy: ±0.3 °C (typical)

• Long Term Drift: <0.02 °C/year

• Range: -40 ~ +125 °C

External Temperature Probe

• Material: Silica gel cable

• Accuracy:

  • ±0.1 °C (–20 °C to +50 °C)

  • ±0.2 °C (–40 °C to +100 °C)

  • ±0.3 °C (–55 °C to +150 °C)

Humidity Monitoring (optional)

• Resolution: 0.04 %RH

• Accuracy: ±3 %RH

• Drift: <0.25 %RH/year

• Range: 0 ~ 96 %RH

Other Features

• Data logging to prevent data loss

• AT commands for local setup

• Tri-color LED for quick status indication
