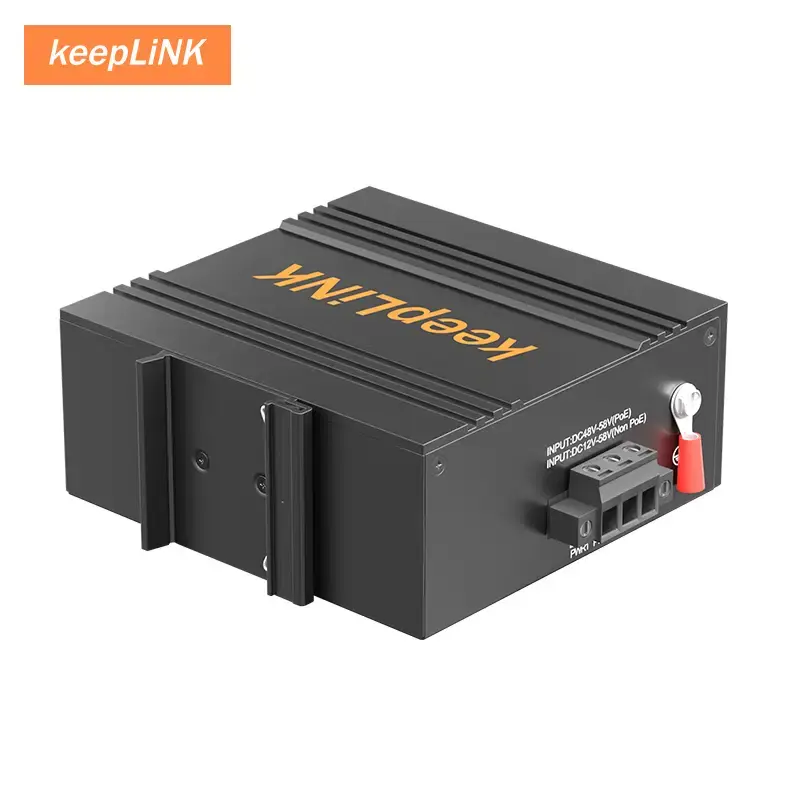

Industrial 8-Port Fast Ethernet Unmanaged Switch for Harsh Environments

This unmanaged industrial Ethernet switch is purpose-built for demanding environments where reliability and simplicity are critical. Supporting eight 10/100 Mbps Ethernet ports, it provides stable network connectivity for field devices, sensors, controllers, and monitoring equipment without the need for configuration.

Designed for continuous operation, the switch features a fan-less cooling design using natural air convection, eliminating moving parts and reducing maintenance requirements. Dual power input support with protection features enhances system redundancy and operational reliability in industrial deployments.

The compact, IP40-rated aluminium housing allows installation in control cabinets, roadside enclosures, and industrial panels, making it well suited for outdoor IoT systems, transportation networks, and citywide surveillance infrastructure.

Network & Performance

• Total ports: 8 × Ethernet

• Port speed: 10 / 100 Mbps

• Switching capacity: 1.8 Gbps

• Switching architecture: Store-and-forward

• Duplex mode: Full-duplex and half-duplex

• VLAN support: Yes

Features

• Unmanaged, plug-and-play operation

• VLAN support

• Fan-less, passive cooling design

• Dual power input support

• Reverse polarity protection

• Overcurrent protection

Electrical & Environmental

• Power input: Dual DC power input

• Operating temperature: -40°C to +75°C

• Cooling method: Natural air convection

Mechanical

• Enclosure: Industrial aluminium housing

• Protection rating: IP40

• Installation: DIN-rail or panel mount (application dependent)

Compliance

• CE

• FCC

• RoHS

Typical Applications

• Industrial IoT networks

• Citywide and roadside surveillance systems

• Transportation and traffic control systems

• Outdoor monitoring stations

• Factory automation and control panels

• Utilities and infrastructure networks

Installation & Compliance Notes

• This product is intended for industrial data networking applications only and does not provide routing, firewall, or cybersecurity functions.

• Installation should be performed by qualified personnel in accordance with industrial electrical and safety standards.

• Suitable enclosure and grounding practices must be used for outdoor or harsh-environment installations.

• Network performance may vary based on cable quality, electromagnetic interference, and site conditions.

• This switch is not designed for life-safety, emergency, or safety-critical systems unless explicitly stated.

• ProSense Instruments is not responsible for damage or performance issues resulting from improper installation, power supply misuse, or unsuitable environmental conditions.
