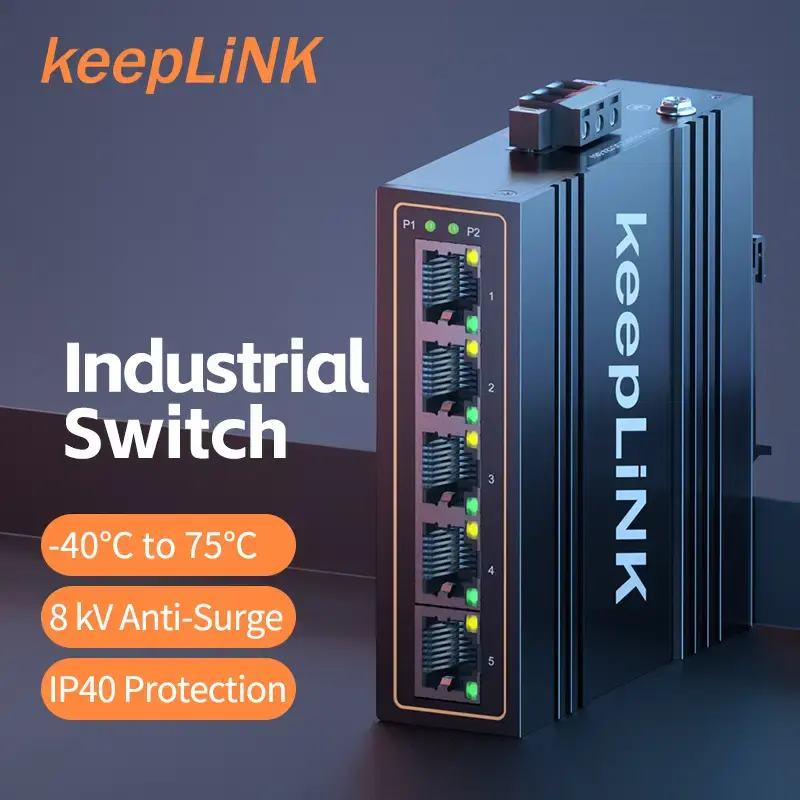

Industrial 5-Port Megabit Ethernet Switch

Industrial 5-Port Megabit Ethernet Switch

$109.00Price
Select
Quantity
This industrial 5-port Fast Ethernet switch delivers reliable, plug-and-play network connectivity in harsh and outdoor environments. Featuring a rugged IP40 aluminium enclosure, wide operating temperature range, and fanless design, it is ideal for industrial IoT, transport, surveillance, and control cabinet applications.

  • This unmanaged industrial Ethernet switch is designed for dependable operation where environmental conditions, vibration, and electrical noise are present. With five 10/100 Mbps Ethernet ports, it provides stable connectivity for sensors, controllers, gateways, and monitoring equipment at the network edge without the need for configuration or software.

    The switch uses a fanless, natural-convection cooling design to eliminate moving parts and reduce maintenance requirements. Dual DC power input via industrial terminal block improves resilience in critical installations, while built-in protection features help safeguard against electrical disturbances.

    Compact DIN-rail mounting and an IP40-rated metal housing make this switch suitable for industrial panels, roadside cabinets, factories, and outdoor infrastructure where reliability and long service life are essential.

  • Network & Performance

    • Total ports: 5 × Ethernet

    • Port speed: 10 / 100 Mbps

    • Switching capacity: 1 Gbps

    • Packet forwarding rate: 0.744 Mpps

    • Forwarding delay: < 5 µs

    • MAC address table: 2K entries

    • Packet buffer: 768 KB

    • Jumbo frame support: Up to 2000 bytes

    • Duplex mode: Full-duplex and half-duplex

    • Auto MDI/MDIX: Yes

    • Flow control: Supported

    • VLAN: Not supported

    Topology Support

    • Star topology: Supported

    • Bus topology: Supported

    • Tree topology: Supported

    • Hybrid topology: Supported

    • Ring topology: Not supported

    Electrical & Environmental

    • Power input: 12–58 VDC

    • Power consumption: < 5 W

    • Operating temperature: Up to -40°C to +75°C (installation dependent)

    • Storage temperature: -30°C to +75°C

    • Relative humidity: 5%–95% (non-condensing)

    • Cooling method: Fanless, natural convection

    • MTBF: >100,000 hours

    Mechanical

    • Installation: DIN-rail mounting

    • Enclosure: Industrial aluminium housing

    • Protection rating: IP40

    • Dimensions: 95 × 91 × 31 mm

    • Weight: 0.3 kg

    EMC & Protection

    • Surge protection (power): IEC 61000-4-5 (up to 4 kV / 2 kV)

    • Surge protection (Ethernet): IEC 61000-4-5 (up to 4 kV / 2 kV)

    • ESD: IEC 61000-4-2 Level 4 (8 kV contact / 15 kV air)

    • EFT, RS, CS, PFMF, DIP: Industrial immunity compliant

    Compliance

    • CE

    • FCC

    • RoHS

    • CCC

    Typical Applications

    • Industrial IoT and edge networking

    • Factory automation and control panels

    • Traffic control and roadside cabinets

    • Citywide and outdoor surveillance systems

    • Utilities and infrastructure monitoring

    • Remote telemetry and monitoring stations

    Installation & Compliance Notes

    • This product is intended for industrial data networking applications only and does not provide routing, firewall, or cybersecurity functions.

    • Installation should be performed by qualified personnel in accordance with industrial electrical and safety standards.

    • Appropriate grounding, surge protection, and enclosure practices must be used for outdoor or exposed installations.

    • Network performance may vary based on cabling quality, electromagnetic interference, and site conditions.

    • This switch is not designed for life-safety, emergency, or safety-critical systems unless explicitly specified.

    • ProSense Instruments is not responsible for damage or performance issues resulting from improper installation, incorrect power supply use, or unsuitable environmental conditions.
