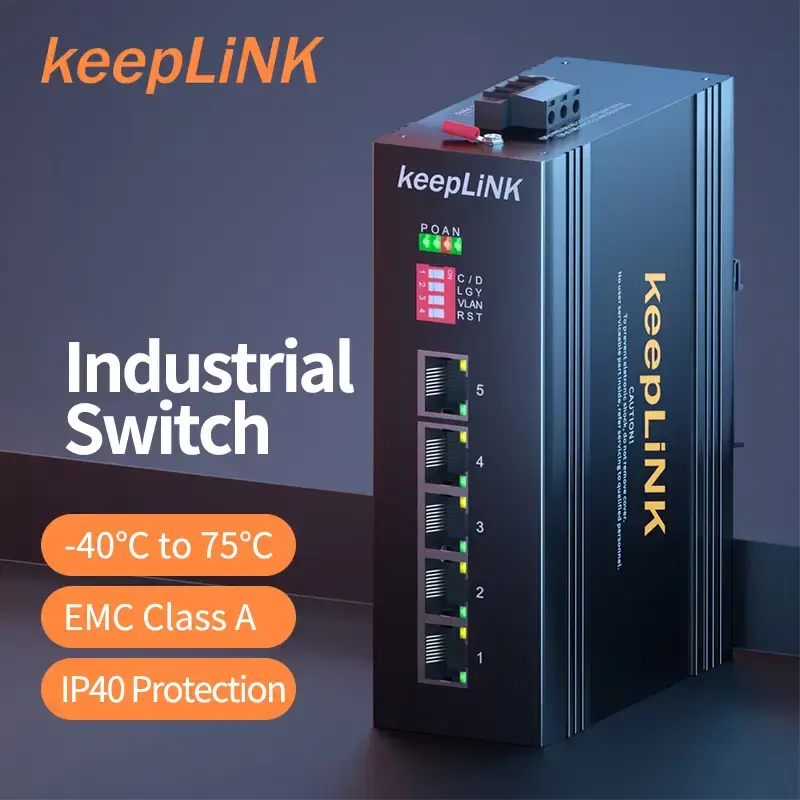

Industrial 5-Port Gigabit Ethernet Switch – DIN-Rail, Unmanaged, Plug-and-Play

Industrial 5-Port Gigabit Ethernet Switch – DIN-Rail, Unmanaged, Plug-and-Play

From $271.34Sale Price
Select
5 Port 1000M
8 Port 100M
8 Port 1000M
16 Port 100M
16 Port 1000M
5 Port 100M
Quantity
This industrial-grade 5-port Gigabit Ethernet switch is designed for reliable, maintenance-free operation in harsh environments. With a rugged aluminium enclosure, wide DC input range, and DIN-rail mounting, it is ideal for industrial automation, control cabinets, and edge networking applications.

  • This unmanaged industrial Ethernet switch provides five Gigabit RJ45 ports with true plug-and-play operation, allowing rapid deployment without configuration or software. Built for industrial environments, it supports wide input voltage, extended operating conditions, and passive cooling for long-term reliability.

    Jumbo frame and VLAN support allow seamless integration into modern industrial networks, while auto-negotiation and auto MDI/MDIX simplify installation. The compact aluminium housing and DIN-rail mounting make it well suited for control panels, machinery networks, and outdoor enclosures.

    Key Features

    • 5 × Gigabit Ethernet Ports (10/100/1000 Mbps)

    • Unmanaged Plug-and-Play Operation

    • Industrial Aluminium Enclosure

    • Wide DC Input (12–58 VDC)

    • DIN-Rail Mounting

    • Fanless, Silent Operation

    • VLAN & Jumbo Frame Support

    • Low Power Consumption (< 6 W)

  • Network & Performance

    • Ports:

      • 5 × 10/100/1000Base-T (RJ45)

    • Switching capacity: 10 Gbps

    • Packet forwarding rate: 7.44 Mpps

    • Forwarding delay: < 5 µs

    • MAC address table: 8K entries

    • Packet buffer: 1.5 MB

    • Jumbo frame support: Up to 10K bytes

    • Auto MDI/MDIX: Supported

    • Duplex mode: Full / Half

    Electrical

    • Input voltage: 12–58 VDC

    • Power consumption: < 6 W

    • Power connection: Removable 3-contact terminal block

    Mechanical & Environmental

    • Housing: Industrial aluminium enclosure

    • Cooling: Passive (fanless)

    • Installation: DIN-rail mounting

    • Dimensions: 143 × 104 × 51.5 mm

    • Weight: 0.56 kg

    Compliance

    • CE

    • FCC

    • RoHS

    Typical Applications

    • Industrial automation & PLC networks

    • Control cabinets and machinery panels

    • IIoT edge networking

    • Building management systems

    • Surveillance and access control networks

    • Transportation and infrastructure projects

    Installation & Compliance Notes

    • Designed for industrial data networking applications only.

    • This switch does not provide routing, firewall, or cybersecurity functions.

    • Installation should be carried out by qualified personnel in accordance with local electrical and industrial standards.

    • Network performance depends on cabling quality, connected devices, and environmental conditions.

    • Not intended for life-safety or mission-critical emergency systems unless specifically engineered and certified.
