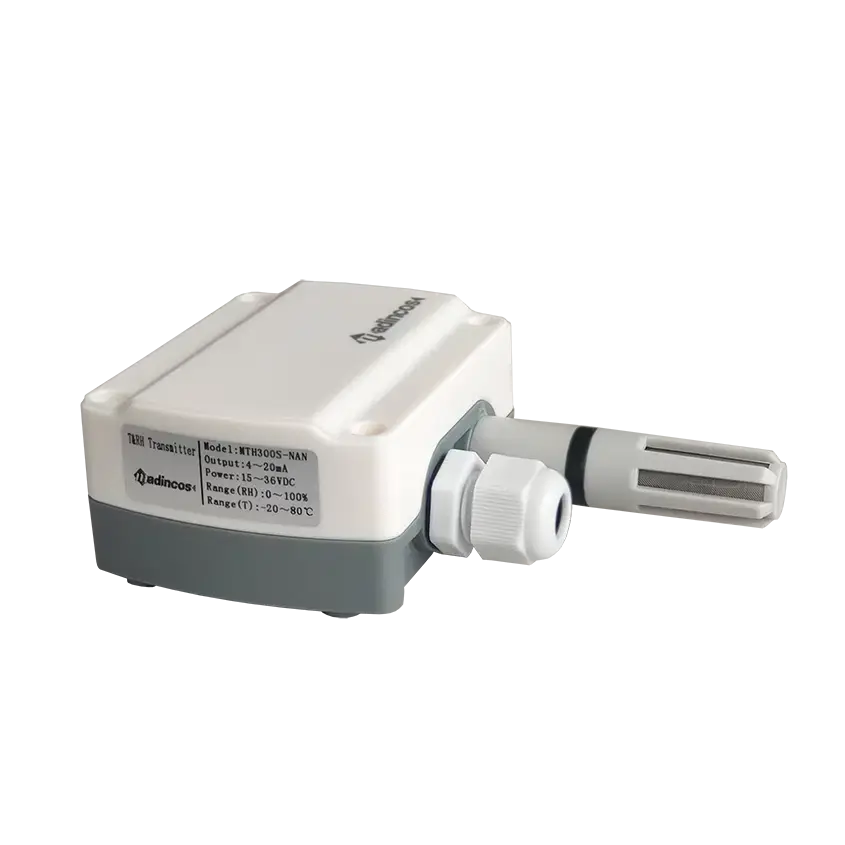

High-Quality Wall-Mount Temperature & Humidity Sensor | ProSense

High-Quality Wall-Mount Temperature & Humidity Sensor | ProSense

From $205.00Sale Price
Output
4-20mA (Stocked)
0-10v
RS485
LCD
No
Yes
Quantity
High-accuracy wall-mounted temperature and humidity sensor with Swiss sensor module, multiple outputs, and IP65 protection — ideal for agriculture, storage, and HVAC.

  • The ProSense High-Quality Wall-Mount Temperature and Humidity Sensor is engineered for precise and stable air measurement in demanding environments. Using an advanced Swiss sensor module and high-performance single-chip design, it provides long-term stability, high accuracy, and excellent anti-interference performance.

    Designed for both agricultural and industrial applications, this sensor is widely used in greenhouses, mushroom houses, seeding rooms, poultry houses, refrigerated storage, warehouses, cold rooms, medicinal facilities, and HVAC systems. It supports a wide range of outputs — 4–20mA, 0–5VDC, 0–10VDC, and RS485 (Modbus-RTU protocol) — ensuring seamless integration with automation systems, PLCs, and monitoring software.

    With temperature ranges of –40°C to 80°C and humidity up to 100%RH, the device delivers ±0.3°C and ±3%RH accuracy, plus features like offset adjustment and selectable ranges via DIN switch. Its rugged IP65 housing and IP54 probe protection ensure reliable operation in high-humidity, dust-prone, and corrosive environments.

    For professional-grade temperature and humidity monitoring in agriculture, storage, and building automation, ProSense delivers accuracy, reliability, and durability.

  • Accuracy T:±0.3℃ (Full range in average); Power Supply 15-36VDC (4-20mA Output);
    RH: 3%RH (including non-linear, repeatability, hysteresis) 12-36VDC



    (0-5VDC, 0-10VDC; RS485 Output)
    Long Stability T: ＜0.04℃/year; Power consumption 60mA
      RH: ＜0.05%RH/year Housing Material ABS
    Range T: -20 to 80℃; 0 to 50℃, , -40 to 60℃; Probe Type Dust-proof (standard); water-proof
      RH:0-99.9% Installation Wall Type
    Resolution T: 0.1℃,  RH:0.1%RH Case Size 80mmx65mmx38mm (LXD)
    Response time T: 6t(63%): min=5s, max=30s; Probe Size 42mmx 16mm (LXD)
    H (90% static air): 8second Terminals Size 1×2.5 mm² or 2×1.5 mm²
    Load resistor ＜500ohm Entry connector M16x1.5mm
    Output 4-20ma, 0-5VDC, 0-10VDC; RS485 output Protection Electrical Case: IP65; Probe: IP54
    RS485 Protocol Standard MODBUS-RTU protocol Working Ambient T:-40 to 80℃, H:0-99.9%, no dew
    Baud rate 9600; customized Storage Temperature 10-50℃ (0-125℃ at peak)
