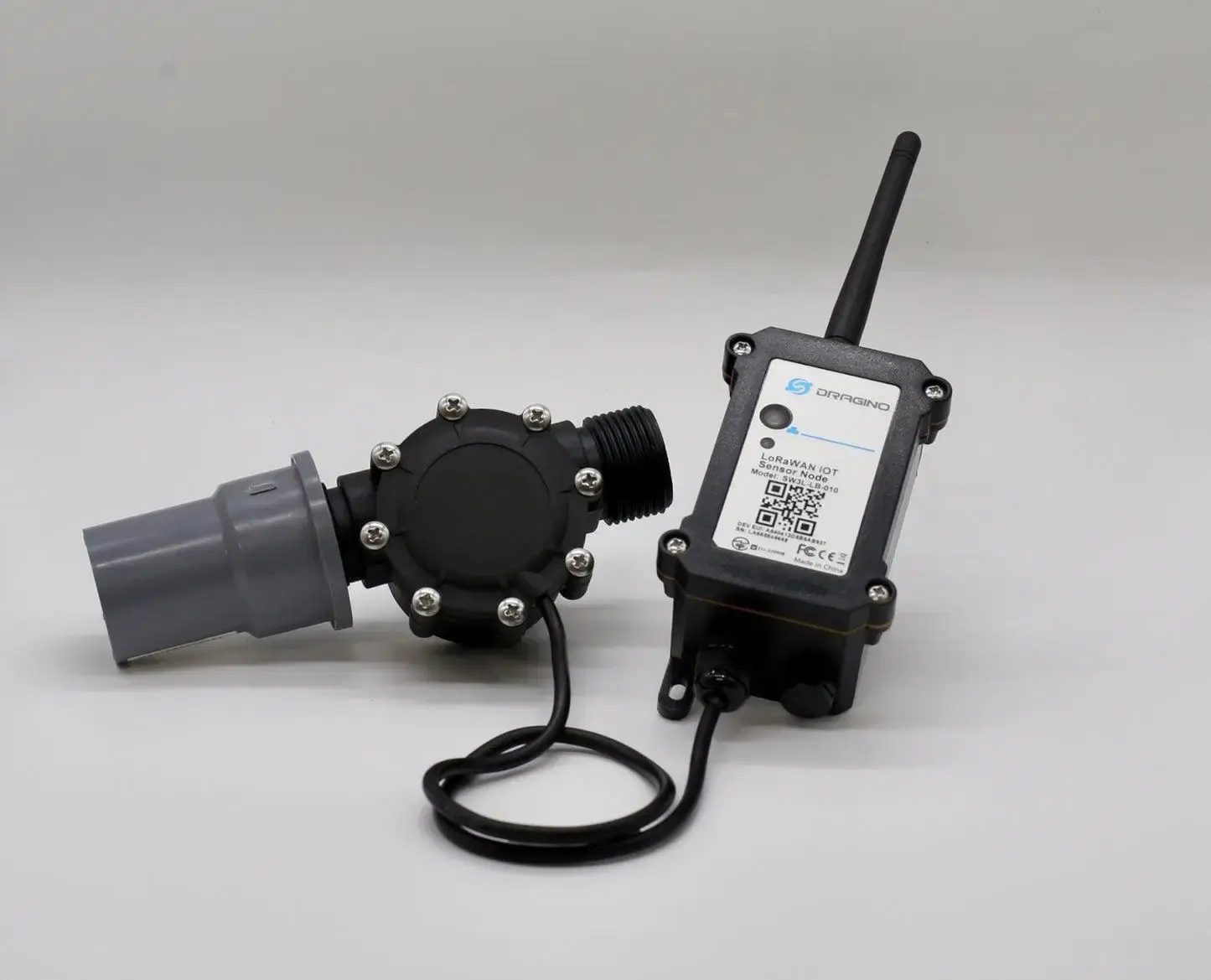

DRAGINO Smart Water Flow Sensor with NB-IoT

DRAGINO Smart Water Flow Sensor with NB-IoT

From $248.00Sale Price
DRAGINO Smart Water Flow Sensor with NB-IoT is a flow sensor designed to monitor water flow volume and transmit readings to an IoT server. It can periodically upload flow data and detect water flow status for applications such as water control and water waste monitoring. With Bluetooth v5.1 configuration, OTA firmware updates, multiple NB-IoT bands and an 8500mAh/19000mAh Li-SOCl2 battery, the SW3L-NB is suited to long-term indoor and outdoor water monitoring applications

The DRAGINO Smart Water Flow Sensor with NB-IoT is a battery-powered NB-IoT flow sensor for remote water flow monitoring. It is designed to detect water flow volume and transmit the information to an IoT server, making it suitable for applications where water usage needs to be monitored without relying on a local wired connection.

The DRAGINO Smart Water Flow Sensor with NB-IoT periodically sends water flow volume data and can also detect water flow status and generate an alarm. Dragino specifically describes its use for identifying unnecessary water consumption, such as continuous flow caused by a broken toilet.

The unit supports MQTT, MQTTS, UDP and TCP uplink methods for connection to different IoT servers. Bluetooth v5.1 can be used for remote configuration and firmware updates, while downlink communication allows configuration changes.

How it works

  • The connected flow sensor detects water flow and generates flow pulses.
  • It processes the flow information and records the water flow volume.
  • Flow data is periodically transmitted to an IoT server through the NB-IoT network.
  • The device can monitor water flow status and send an alarm when the configured conditions indicate potential water waste.
  • Bluetooth v5.1 provides a local method for configuration and firmware updates.
  • Depending on the selected version, the unit can be supplied without a SIM card or with a built-in 1NCE SIM card and pre-configured IoT server connection.

Why choose this product

  • NB-IoT connectivity allows water flow information to be transmitted remotely over a supported cellular IoT network.
  • Battery-powered operation makes the sensor suitable for installations where running a separate power supply is impractical.
  • Remote configuration through Bluetooth v5.1 simplifies setup and firmware maintenance.
  • Multiple communication options support different IoT server requirements through MQTT, MQTTS, UDP and TCP.
  • Several flow sensor sizes are available, allowing the product to be configured for different pipe connections.

Benefits

  • Enables remote monitoring of water usage.
  • Helps identify abnormal or unwanted water flow.
  • Reduces the need for manual collection of water flow readings.
  • Supports long-term deployment with an 8500mAh/19000mAh Li-SOCl2 battery.
  • Suitable for both indoor and outdoor installations.
  • Provides a practical option for connecting water flow monitoring to an IoT platform.
