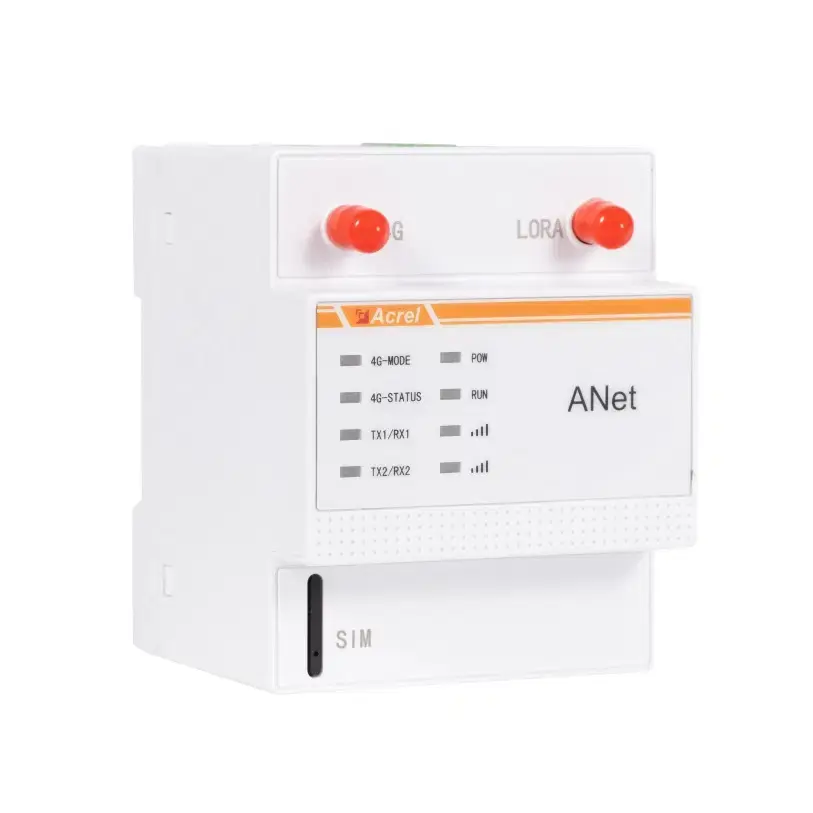

ACREL 4G LTE Modbus Ethernet IoT Gateway
ACREL 4G LTE Modbus Ethernet IoT Gateway is a smart IoT communication gateway for collecting data from compatible energy meters and field devices. It features one optically isolated RS485 port, an RJ45 Ethernet port and 4G LTE communication, with Modbus TCP and MQTT available for upstream data transmission. Based on an embedded Linux platform, it can also perform local data processing and supports remote data management for energy monitoring and IoT applications.
ACREL 4G LTE Modbus Ethernet IoT Gateway
Specification Details Product AWT200 Smart IoT Gateway Function Data communication gateway for data acquisition, analysis, monitoring and control Processor M4 Kernel Processor frequency 168 MHz Storage 8 GB TF Card Ethernet 10M/100M × 1, electrical isolation Serial ports RS485 × 4/8 RS485 interface 485A, 485B, GND, electrical isolation RS485 baud rate 1200 to 115200 bps Check bit None, Odd, Even Data bit 7-8 bits Flow control No flow control IP mode IPv4, IPv6 Communication modes TCP/IP direct communication, RS485, LoRa Protocols TCP, UDP, HTTP, DHCP, Modbus RTU, Modbus TCP, MQTT Operating modes TCP server, TCP client, UDP server, UDP client Configuration Windows desktop software, web browser, remote debugging Firmware upgrade Windows desktop software, web browser, serial port upgrade Power supply DC 12-24 V Installation 6-module DIN rail Dimensions 108 mm × 88 mm × 70 mm Housing material Flame-retardant ABS Operating temperature -20 °C to +55 °C Storage temperature -40 °C to +85 °C Humidity <95% RH, non-condensing Display 1.2-inch dot-matrix display Local controls Buttons Maximum centralised collection Up to 10,000 points Additional interfaces AI/DI/DO wiring terminals - Supports centralised collection of up to 10,000 points.
- Up to eight electrically isolated RS485 serial ports.
- 10M/100M electrically isolated Ethernet interface.
- Supports IPv4 and IPv6.
- Supports TCP, UDP, HTTP and DHCP.
- Supports Modbus RTU, Modbus TCP and MQTT.
- LoRa communication support.
- 8 GB TF card storage.
- 1.2-inch dot-matrix display with buttons.
- DIN-rail mounting.
- Industrial equipment data acquisition
- Equipment monitoring systems
- Industrial communication networks
- Multi-device RS485 data collection
- IoT data communication systems
- Centralised monitoring and control systems
- Applications requiring communication between field equipment and higher-level software
This Acrel product is supplied as an industrial/OEM component for incorporation into a larger electrical panel, machine, control system or engineered installation. It is not represented as a complete, standalone RCM-compliant end product.
The system designer, panel builder, machine manufacturer or integrator is responsible for determining the component�s suitability and ensuring that the completed equipment or installation complies with all applicable Australian electrical safety, EMC, communications, labelling and certification requirements.
Any compliance documents provided by the manufacturer relate only to the component and its specified test configuration. They do not constitute approval or certification of the customer�s completed panel, machine or system.
Installation and integration must be completed by suitably qualified personnel in accordance with the manufacturer�s instructions, rated specifications, applicable Australian standards and local regulatory requirements. Please contact ProSense before ordering if model-specific test reports or manufacturer compliance documents are required.
