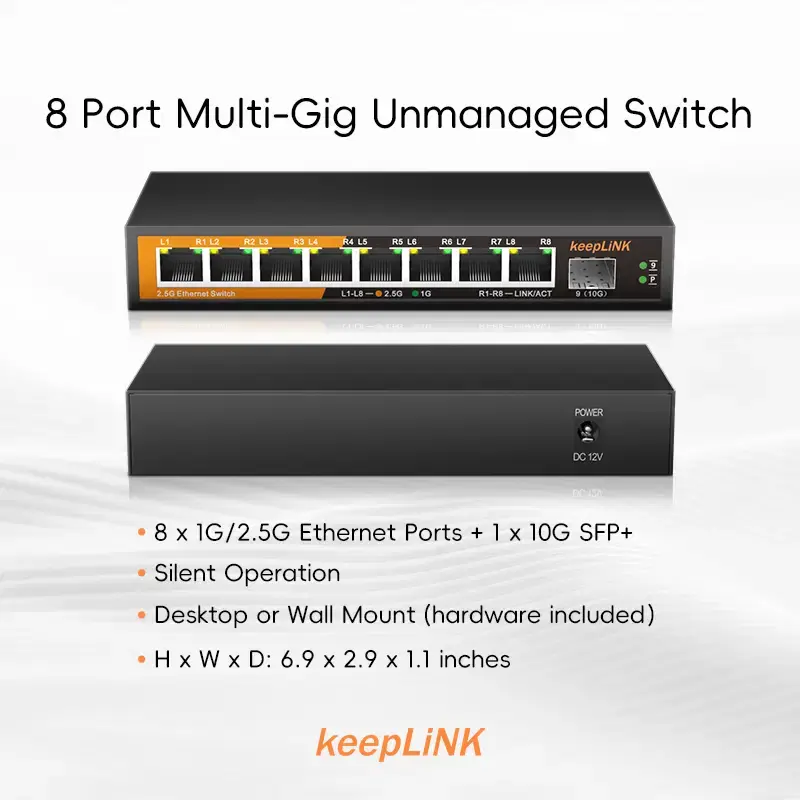

9-Port Multi-Gigabit Unmanaged Ethernet Switch with 8 × 2.5Gb Ports and 1 × 10Gb

9-Port Multi-Gigabit Unmanaged Ethernet Switch with 8 × 2.5Gb Ports and 1 × 10Gb

From $203.55Sale Price
Select
Quantity
This compact, fanless multi-gigabit Ethernet switch delivers simple, high-speed network expansion without configuration. Featuring eight 2.5Gb Ethernet ports and a 10Gb SFP+ uplink, it is ideal for offices, Wi-Fi 6 backhaul, surveillance systems, and high-bandwidth edge deployments.

  •

    This unmanaged multi-gigabit Ethernet switch is designed for environments that require higher throughput than standard Gigabit Ethernet while keeping deployment simple and cost effective. Eight 2.5Gb RJ45 ports support high-speed edge devices such as workstations, access points, cameras, and gateways, while the 10Gb SFP+ uplink enables fast aggregation to servers, NAS devices, or core switches.

    A non-blocking switching architecture ensures wire-speed performance with low latency across all ports. VLAN support and IEEE 802.1p traffic prioritisation allow integration into segmented or performance-sensitive networks while maintaining true plug-and-play operation.

    The fanless metal enclosure supports desktop placement and ensures silent, maintenance-free operation. Low power consumption and compact dimensions make this switch suitable for continuous use in technical and commercial environments.

  • Network & Performance

    • Total ports: 9

    • Ethernet ports:

      • 8 × auto-negotiating 1G / 2.5Gb RJ45

    • Uplink port:

      • 1 × 1G / 10Gb SFP+ (module dependent)

    • Switching capacity: 60 Gbps

    • Packet forwarding rate: 44.64 Mpps

    • Forwarding delay: < 10 µs

    • Switching architecture: Non-blocking

    • MAC address table: 4K entries

    • Packet buffer: 8.1 MB

    • Jumbo frame support: Up to 10K bytes

    Features

    • Unmanaged, plug-and-play operation

    • VLAN support

    • IEEE 802.1p traffic prioritisation

    • Auto MDI/MDIX

    • Per-port LED indicators

    • Energy-Efficient Ethernet (IEEE 802.3az)

    • Fanless, silent operation

    Electrical & Environmental

    • Power input: External DC supply (12 VDC)

    • Operating temperature: -10°C to +55°C

    • Cooling: Passive, fanless design

    Mechanical

    • Installation: Desktop (wall mounting dependent on installation method)

    • Enclosure: Metal housing

    • Dimensions: 175 × 73 × 28 mm

    • Weight: 0.3 kg

    Compliance

    • CE

    • FCC

    • RoHS

    Typical Applications

    • Wi-Fi 6 / Wi-Fi 6E access point backhaul

    • High-speed office and commercial networks

    • IP surveillance and monitoring systems

    • Industrial Ethernet and automation networks

    • Server and NAS uplinks

    • Laboratories and technical workspaces

    Installation & Compliance Notes

    • This product is intended for data networking applications only and does not provide routing, firewall, or cybersecurity functionality.

    • SFP+ performance and compatibility depend on the selected transceiver or DAC cable and connected equipment.

    • Installation should be carried out indoors in a controlled environment with adequate ventilation.

    • Network performance may vary depending on cabling quality, device capability, and overall network design.

    • This switch is not designed for life-safety, emergency, or safety-critical systems unless explicitly specified.

    • ProSense Instruments is not responsible for performance issues or damage caused by incorrect installation, incompatible modules, or unsuitable power supplies.
