9-Port Multi-Gigabit PoE Ethernet Switch with 8 × 2.5Gb PoE Ports and 1 × 10Gb

9-Port Multi-Gigabit PoE Ethernet Switch with 8 × 2.5Gb PoE Ports and 1 × 10Gb

$243.00Price
Select
Quantity
This high-performance multi-gigabit PoE switch delivers fast data connectivity and reliable Power over Ethernet for modern networks. With eight 2.5Gb PoE ports and a 10Gb uplink, it is ideal for Wi-Fi 6 access points, IP surveillance, industrial IoT, and commercial deployments requiring higher bandwidth and centralised power delivery.

  • This unmanaged multi-gigabit PoE Ethernet switch is designed for applications where increased throughput and simplified power distribution are required. Eight 2.5Gb RJ45 PoE ports supply both data and power to connected devices such as wireless access points, IP cameras, access control systems, and IoT equipment. A high-speed 10Gb uplink enables efficient aggregation to a core switch, router, or server.

    Supporting IEEE 802.3af/at standards, the switch automatically detects PoE-compatible devices and allocates power as needed, reducing installation complexity and cabling costs. VLAN support allows integration into segmented networks, while a non-blocking switching architecture ensures consistent performance across all ports.

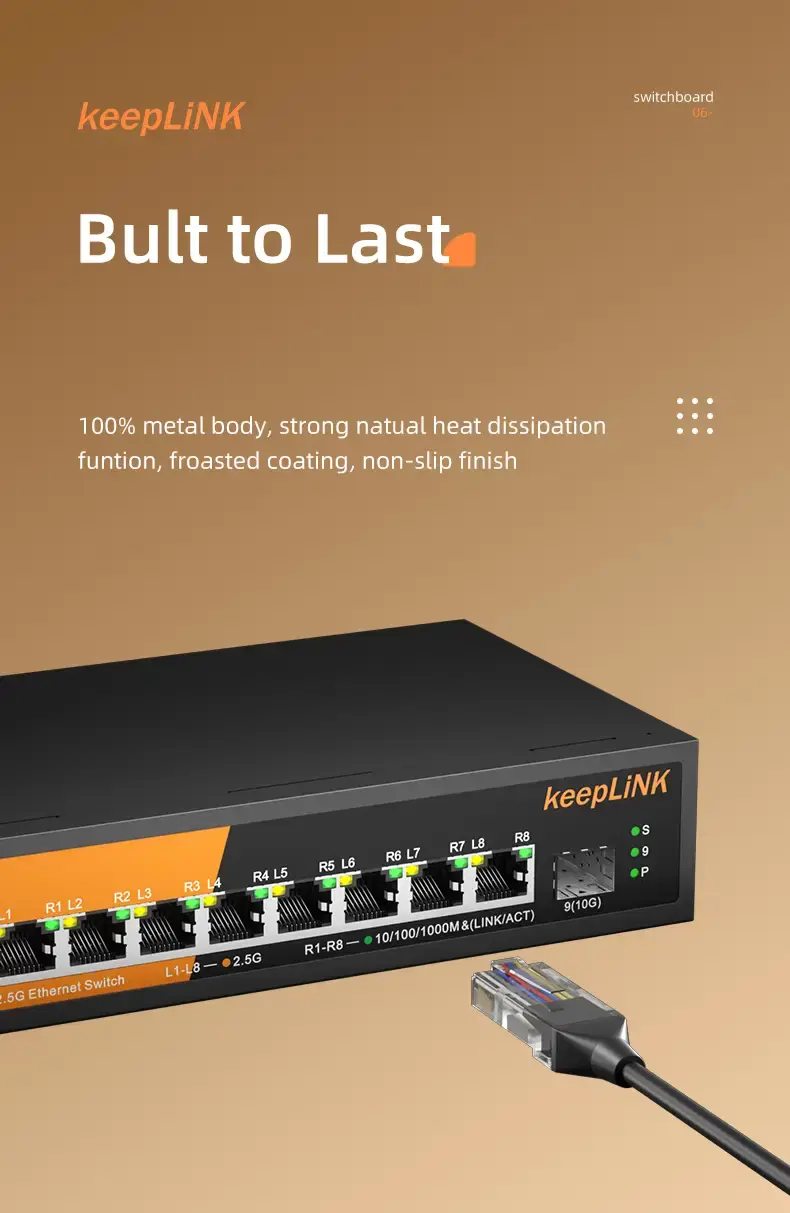

    The metal enclosure supports continuous operation and is suited to desktop or technical area installation where reliability and performance are critical.

  • Network & Performance

    • Total ports: 9

    • Ethernet ports:

      • 8 × auto-negotiating 1G / 2.5Gb PoE-enabled RJ45

    • Uplink port:

      • 1 × 10Gb Ethernet

    • Switching capacity: 60 Gbps

    • Switching architecture: Non-blocking

    • Duplex mode: Full-duplex and half-duplex

    • VLAN support: Yes

    PoE Capabilities

    • PoE standard: IEEE 802.3af / IEEE 802.3at (PoE / PoE+)

    • PoE ports: Ports 1–8

    • Maximum PoE output per port: 30 W

    • Total PoE power budget: 135 W

    • PoE pinout: 1, 2, 3, 6

    Electrical & Environmental

    • Power input: AC mains supply

    • Designed for indoor, continuous operation

    Mechanical

    • Enclosure: Metal housing

    • Installation: Desktop or technical cabinet

    Compliance

    • CE

    • FCC

    • RoHS

    Typical Applications

    • Wi-Fi 6 / Wi-Fi 6E access points

    • IP cameras and surveillance systems

    • Access control and security devices

    • Industrial IoT and edge networking

    • Commercial offices and facilities

    • Building management systems

    Installation & Compliance Notes

    • This product is intended for data networking and PoE power delivery applications only and does not provide routing, firewall, or cybersecurity gateway functionality.

    • PoE power is supplied only to compatible IEEE 802.3af/at devices. Connecting non-compliant equipment may result in damage.

    • Total PoE output is shared across all PoE ports and must not exceed the stated PoE power budget.

    • Installation should be carried out indoors in a controlled, well-ventilated environment.

    • This switch is not designed for life-safety, emergency, or safety-critical systems unless explicitly specified.

    • ProSense Instruments is not responsible for damage or performance issues caused by incorrect installation, incompatible devices, or unsuitable power or cabling.
