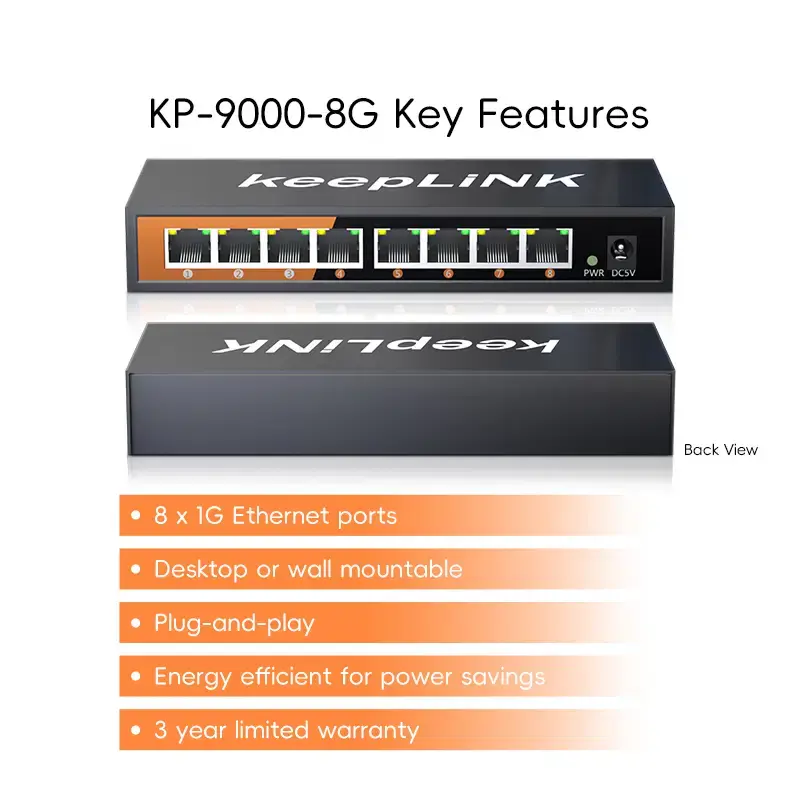

8-Port Gigabit Ethernet Unmanaged Switch – Fanless Plug-and-Play Network Switch

8-Port Gigabit Ethernet Unmanaged Switch – Fanless Plug-and-Play Network Switch

From $131.96Sale Price
Select
Quantity
This compact 8-port Gigabit Ethernet switch provides reliable, high-speed wired networking in a simple plug-and-play design. Featuring a fanless, silent operation and low power consumption, it is ideal for offices, workshops, control panels, and home or small business networks.

  • This unmanaged Gigabit Ethernet switch is designed for straightforward network expansion where reliability and ease of use are essential. With eight 10/100/1000 Mbps Ethernet ports, it enables fast, stable connectivity for computers, printers, IP devices, controllers, and other networked equipment.

    No configuration or software is required. Simply connect power and Ethernet cables to begin operation. The switch automatically negotiates speed and duplex settings, ensuring optimal performance across all connected devices.

    Housed in a compact metal enclosure, the fanless design ensures silent, maintenance-free operation while improving long-term reliability. Energy-efficient Ethernet technology reduces power consumption during periods of low network activity, making this switch suitable for continuous operation.

  • Network & Performance

    • Total ports: 8 × Ethernet

    • Port speed: 10 / 100 / 1000 Mbps

    • Switching capacity: 16 Gbps

    • Packet forwarding rate: 11.9 Mpps

    • Forwarding delay: < 10 µs

    • MAC address table: 4K entries

    • Packet buffer: 2 MB

    • Jumbo frame support: Up to 10K bytes

    • Duplex mode: Full-duplex and half-duplex

    Features

    • Unmanaged, plug-and-play operation

    • VLAN support

    • Auto-negotiation

    • Fanless, silent design

    • Energy-Efficient Ethernet (IEEE 802.3az)

    Electrical & Environmental

    • Input voltage: 5 VDC

    • Total power consumption: ≤ 5 W

    • Operating temperature: -10°C to +50°C

    • Storage temperature: -40°C to +70°C

    • Relative humidity: 10%–90% (non-condensing)

    Mechanical

    • Installation: Desktop or wall mount

    • Enclosure: Metal housing

    • Cooling: Passive (fanless)

    • Dimensions: 175 × 73 × 28 mm

    • Weight: 0.35 kg

    Compliance

    • CE

    • FCC

    • RoHS

    Typical Applications

    • Office and small business networks

    • Home offices and media systems

    • Industrial control panels

    • Test benches and laboratories

    • IP devices, controllers, and gateways

    • Workshop and light industrial environments

    Installation & Compliance Notes

    • This product is intended for data networking applications only and does not provide routing, firewall, or cybersecurity functions.

    • Installation should be performed indoors in a dry, well-ventilated environment.

    • Network performance depends on cabling quality, connected devices, and overall network design.

    • This switch is not designed for life-safety, emergency, or safety-critical systems unless explicitly stated.

    • ProSense Instruments is not responsible for performance issues or damage resulting from incorrect installation, incompatible equipment, or unsuitable power supplies.
