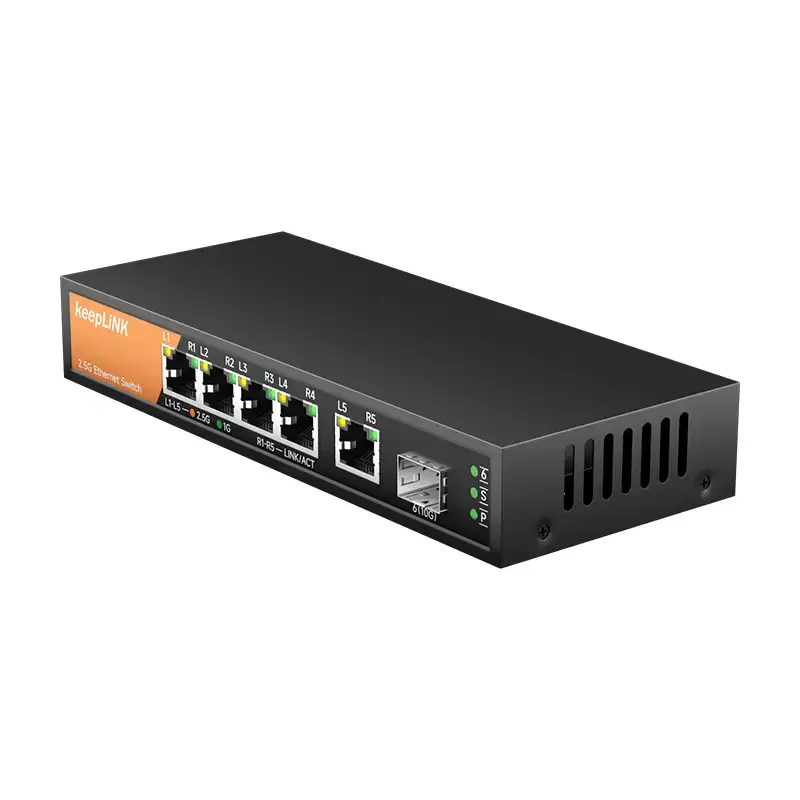

6-Port Multi-Gigabit Ethernet Switch – 5× 2.5GbE + 1× 10Gb SFP+, Unmanaged

6-Port Multi-Gigabit Ethernet Switch – 5× 2.5GbE + 1× 10Gb SFP+, Unmanaged

From $156.70Sale Price
Select
Quantity


  • This 6-port unmanaged Multi-Gigabit Ethernet switch delivers five 2.5Gb RJ45 ports and one 10Gb SFP+ uplink, enabling fast, reliable connectivity for workstations, NAS devices, Wi-Fi 6/6E access points, and servers. With plug-and-play operation, there is no configuration required—simply connect and go.

    The fanless metal enclosure ensures silent operation and long-term reliability, while jumbo frame support and a non-blocking architecture provide smooth data flow for bandwidth-intensive applications. Its compact footprint suits desktop installations and small network cabinets.

    Key Features

    • 5 × 2.5Gb Ethernet Ports (Auto-negotiating 1G / 2.5G)

    • 1 × 10Gb SFP+ Uplink

    • Unmanaged, Plug-and-Play Operation

    • Non-Blocking Switching Architecture

    • Jumbo Frame Support (up to 10K bytes)

    • Fanless, Silent Operation

    • Compact Metal Enclosure

    • Energy-Efficient Ethernet Support

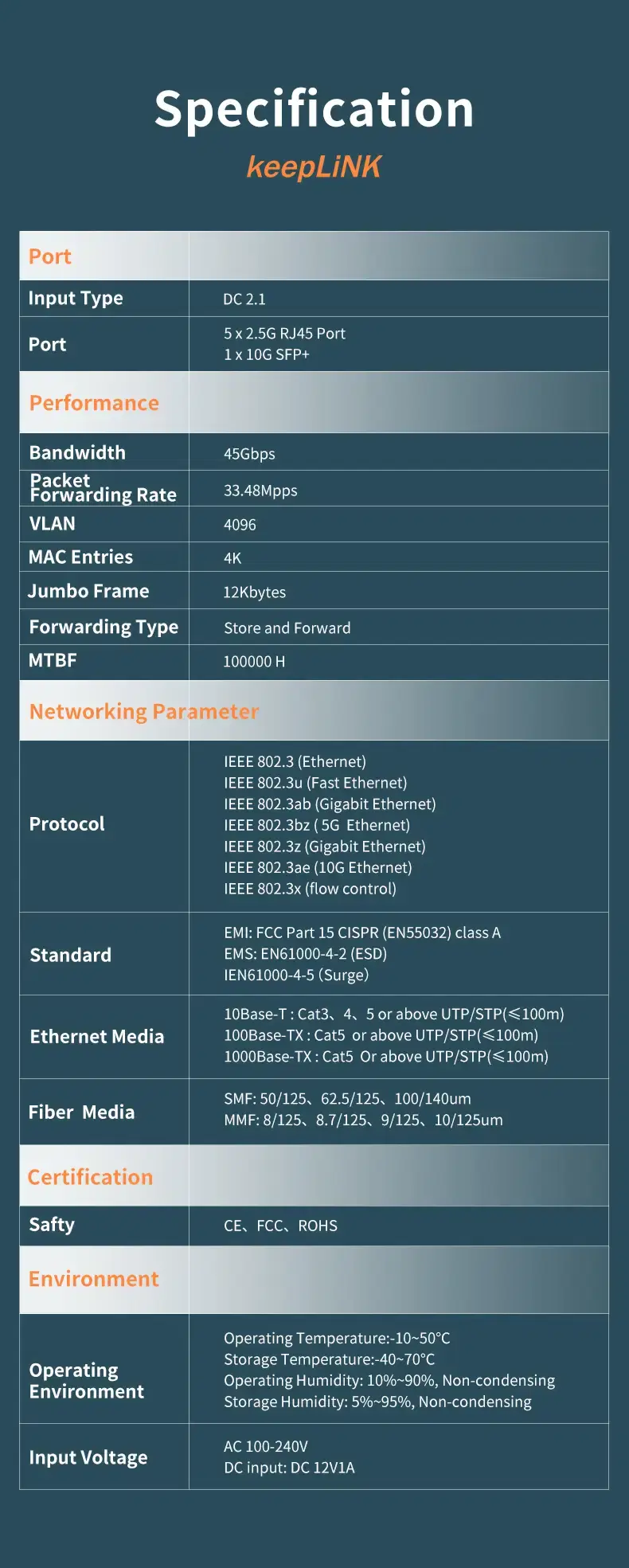

  • Network & Performance

    • Total ports: 6

      • 5 × RJ45 Multi-Gigabit Ethernet (1G / 2.5G)

      • 1 × SFP+ (10Gb)

    • Switching capacity: 45 Gbps

    • Packet forwarding rate: 33.48 Mpps

    • Forwarding delay: < 10 µs

    • MAC address table: 4K

    • Buffer memory: 8.1 MB

    • Jumbo frames: Up to 10K bytes

    • Duplex mode: Full / Half duplex

    Electrical & Mechanical

    • Power input: External DC 12V (1.5A)

    • Cooling: Fanless

    • Enclosure: Metal

    • Installation: Desktop (wall mounting optional)

    • Dimensions: 175 × 73 × 28 mm

    • Weight: 0.3 kg

    Environmental

    • Operating temperature: –10°C to +55°C

    Compliance

    • CE

    • FCC

    • RoHS

    Typical Applications

    • Wi-Fi 6 / Wi-Fi 6E access point backhaul

    • High-speed NAS and workstation networking

    • Small office and studio networks

    • Edge computing and lab environments

    • Video editing and content production

    • Light industrial and IoT aggregation

    Installation & Compliance Notes

    • This product is an unmanaged Ethernet switch and does not provide routing, firewalling, or advanced network security features.

    • SFP+ transceivers and fibre modules are not included and must be selected to match network requirements.

    • Installation should be carried out by suitably qualified personnel in accordance with local electrical and networking standards.

    • Not intended for life-safety, medical, or mission-critical systems unless independently certified.
