24-Port Gigabit Ethernet Unmanaged Switch – Plug-and-Play

This unmanaged 24-port Gigabit Ethernet switch is designed for straightforward network expansion where stability, speed, and simplicity are critical. With twenty-four 10/100/1000 Mbps RJ45 ports, it provides ample capacity to connect computers, printers, IP devices, controllers, gateways, and other network equipment in a single central switch.

No software setup is required. Simply connect power and Ethernet cables and the switch automatically negotiates link speed and duplex settings. VLAN support enables integration into segmented networks where traffic separation is required, while jumbo frame support helps improve efficiency in high-throughput environments.

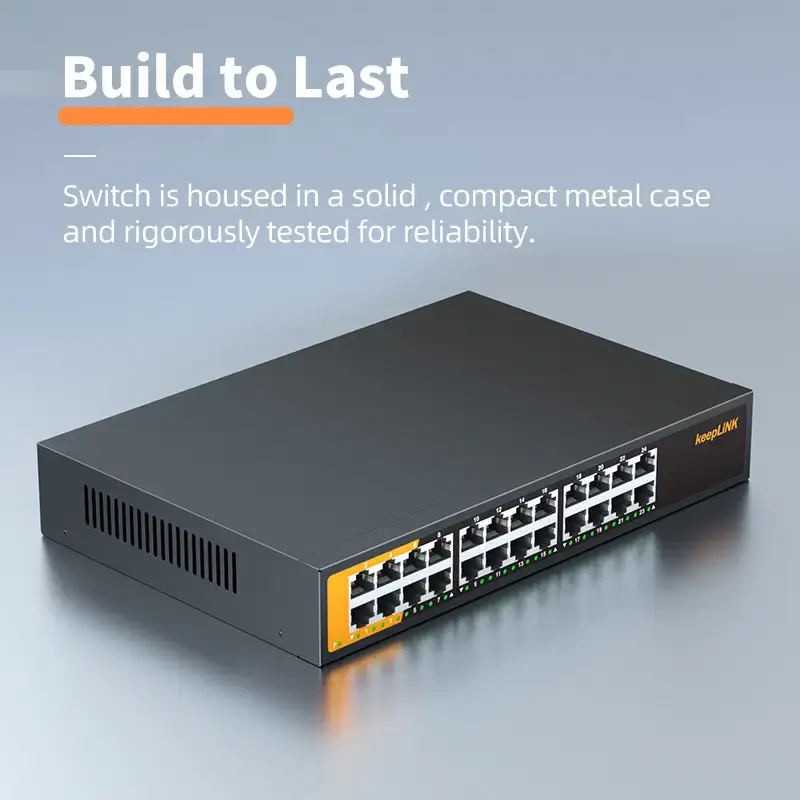

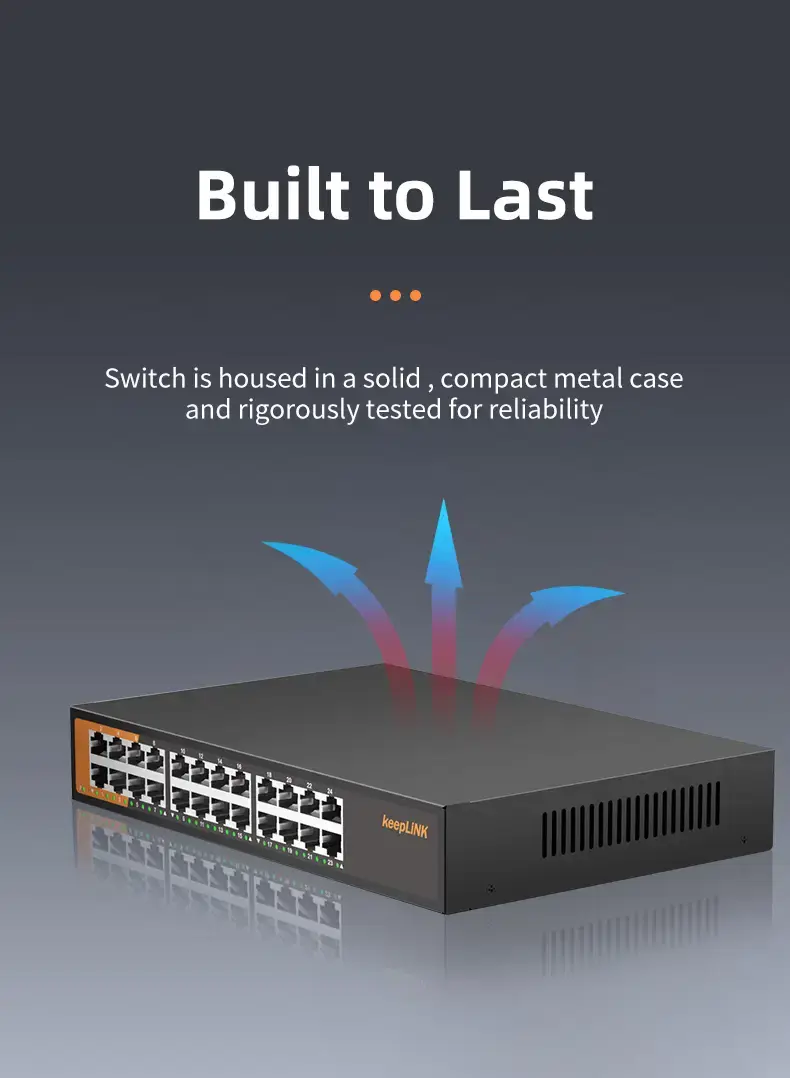

Housed in a durable metal enclosure with a fanless thermal design, it operates silently and is suitable for continuous use in office or technical environments. Energy-efficient Ethernet reduces power consumption during periods of low activity, improving operating efficiency over time.

Network & Performance

• Total ports: 24 × RJ45 Ethernet

• Port speed: 10 / 100 / 1000 Mbps

• Switching capacity: 48 Gbps

• Packet forwarding rate: 35.71 Mpps

• Forwarding delay: < 10 µs

• MAC address table: 2K entries

• Packet buffer: 2 MB

• Jumbo frame support: Up to 13K bytes

• Duplex mode: Full-duplex and half-duplex

• Auto MDI/MDIX: Yes

Features

• Unmanaged, plug-and-play operation

• VLAN support

• Fanless, silent design

• Energy-Efficient Ethernet support (IEEE 802.3az)

• Per-port LED indicators for link/activity (typical)

Electrical & Environmental

• Power input: AC mains supply

• Operating temperature: -10°C to +55°C

• Storage temperature: -40°C to +70°C

Mechanical

• Installation: Desktop or wall mount

• Enclosure: Metal housing

• Cooling: Passive (fanless)

• Dimensions: 270 × 181 × 44 mm

• Weight: 1.14 kg

Compliance

• CE

• FCC

• RoHS

Typical Applications

• Office and small-to-medium business networks

• Warehouses and back-of-house network expansions

• Workshops and light industrial environments

• Control cabinets and technical rooms

• Surveillance networks (non-PoE)

• Test benches and lab networks

Installation & Compliance Notes

• This product is intended for data networking applications only and does not provide routing, firewall, or cybersecurity functionality.

• Installation should be carried out indoors in a dry, well-ventilated environment.

• Network performance depends on cable quality, connected devices, and overall network design.

• This switch is not designed for life-safety, emergency, or safety-critical systems unless explicitly stated.

• ProSense Instruments is not responsible for performance issues or damage resulting from incorrect installation, incompatible equipment, or unsuitable power supply conditions.
