What to Measure in an Industrial Pump Station for Early Fault Detection
A pump station usually gives warning before it fails. The trouble is that the warning may appear as a small pressure change, an unusual start pattern, a rising motor current, or a vibration trend that looks harmless until a bearing fails. Measuring the right signals turns those early clues into maintenance action.
Industrial pump stations often run in tough conditions. They may handle wastewater, process water, cooling water, chemicals, slurry, stormwater, or transfer duties across long pipe runs. A minor fault can quickly become a costly stoppage, a flooded pit, a burnt-out motor, or damaged downstream equipment.
The most useful monitoring strategy is not always the most complicated one. In many pump stations, six measurements provide the clearest view of system health:
Pressure
Flow
Tank level
Motor current
Vibration
Run-status monitoring
Together, these readings show whether the pump is moving liquid, whether the system is resisting that movement, whether the pump is running at the right time, and whether the equipment is wearing out.
Pressure shows how hard the pump is working against the system
Pressure is one of the first measurements to check in a pump station. It tells you how much resistance the pump is working against and whether the discharge conditions are changing.
A pressure transmitter on the discharge line can help detect:
Blocked strainers or filters
Closed or partly closed valves
Pipe blockages
Failed non-return valves
Air locks
Pump wear
Abnormal downstream demand
A rising discharge pressure with falling flow often points to a restriction. For example, if a pump normally delivers steady flow at a stable discharge pressure, then pressure starts climbing while flow drops, the pump may be pushing against a blocked filter, a closed valve, or a downstream blockage.
Low pressure can be just as useful. If the pump starts but discharge pressure does not build, possible causes include a dry pump, loss of prime, a failed impeller, a suction blockage, or an open bypass line. In a wastewater station, low discharge pressure during a call to pump may indicate ragging around the impeller or a worn pump that can no longer generate the required head.
Suction pressure is also valuable where pumps draw from a pressurised line, long suction pipe, or process vessel. Low suction pressure can warn of cavitation risk, inlet blockage, or supply failure. If suction pressure drops below the safe operating range, the pump may run dry or pull vapour into the casing.
Practical advice
Place pressure transmitters where they reflect real pump conditions. A discharge sensor should sit close enough to the pump to detect pump performance, but far enough from turbulence or elbows to avoid noisy readings where possible. For critical pumps, measuring both suction and discharge pressure gives a clearer picture of differential pressure across the pump.
Use trends, not just fixed alarms. A slow pressure change over weeks may show filter fouling or pipe scaling long before production is affected.
Flow confirms that liquid is actually moving
Pressure can tell you that the pump is working. Flow confirms whether the work is producing the required result.
Flow measurement is especially useful because a pump can run and still fail to move enough liquid. The motor may be energised, the shaft may turn, and the discharge pressure may look acceptable for a short time, yet the process may not receive the required flow.
Flow monitoring helps detect:
Dry running
Blockages
Worn impellers
Incorrect valve positions
Air entrainment
Pump operating away from its preferred range
Unstable demand
A common example is a pump drawing from a sump. If the pump starts, motor current is lower than normal, and flow is near zero, dry running or loss of prime is likely. If the pump continues in this state, seals can overheat and fail quickly. A flow switch or flow meter can stop the pump before serious damage occurs.
Flow is also helpful for identifying partial blockages. If pressure rises while flow falls, the system may be restricted downstream. If both pressure and flow fall, the issue may be on the suction side, inside the pump, or related to speed control.
For variable speed pumps, flow also helps prove that the control system is doing what it should. If speed increases but flow barely changes, the pump may be at the wrong operating point, a valve may be closed, or the line may be blocked.
Practical advice
Choose a flow meter type that suits the liquid. Clean water, wastewater, chemicals, and slurry all have different requirements. For dirty or conductive liquids, magnetic flow meters are often used. For simpler duties, a flow switch may be enough to prove movement.
Set low-flow alarms with a sensible delay. Pumps may take a short time to build flow after starting, especially if they must prime, push air out, or open a control valve. A short delay prevents nuisance trips while still protecting the equipment.

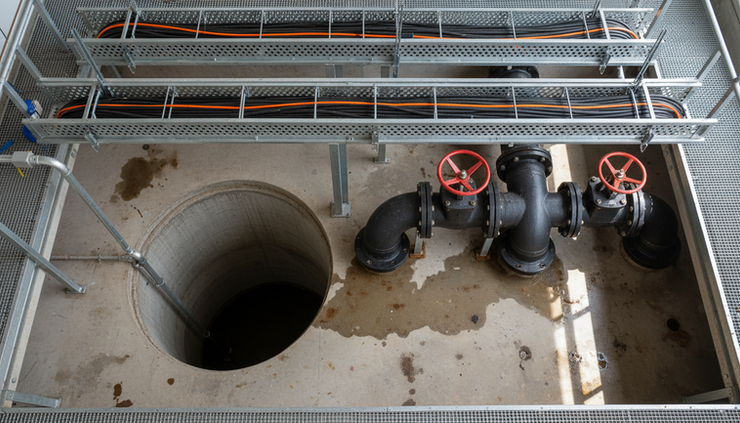

Tank level reveals demand patterns and pump control problems
Level measurement in a tank, sump, wet well, or process vessel gives context to pump operation. It shows whether liquid is available, whether the pumps are keeping up, and whether the control sequence is causing excessive cycling.
Tank level monitoring helps detect:
Dry running risk
Excessive starts and stops
Stuck floats or failed level switches
Inflow higher than pump capacity
Pump underperformance
Overflow risk
Poor control setpoints
For sump pumps, the level signal often drives the start and stop commands. If the level drops below the safe suction point and the pump keeps running, dry running may occur. A low-low level alarm or shutdown protects the pump.
High level alarms are just as important. If a wet well level rises while pumps are running, the station may be unable to keep up. Causes include blocked pumps, closed valves, failed pump starts, undersized pumps for current inflow, or heavy stormwater ingress.
Level trends can also reveal excessive cycling. If the level rises and falls rapidly between start and stop points, the pump may start too often. Frequent starts heat motors, wear contactors, strain couplings, and shorten seal life. This often happens when start and stop levels are set too close together or when a pump is oversized for the duty.
A simple trend can make the fault clear. For example, a tank fills slowly over 20 minutes, then a large pump empties it in 90 seconds. The motor starts many times per hour, even though total flow demand is moderate. Adjusting level setpoints, using a smaller duty pump, or adding variable speed control may reduce wear.
Practical advice
Use continuous level measurement where the cost of failure is high. Ultrasonic, radar, hydrostatic, and guided wave devices can all suit different tanks and liquids. Floats still have a place, especially as independent backup alarms, but continuous level gives better control and better diagnostics.
Add independent high-high and low-low protection where needed. Control sensors can fail. A separate backup device can prevent overflow or dry running if the main level instrument gives a false reading.
Motor current is a simple window into pump load
Motor current is one of the most practical signals in a pump station. It is often available from a variable speed drive, motor protection relay, or current transformer, so it can be monitored without adding a process instrument.
Current helps detect:
Dry running
Blocked or jammed pumps
Bearing or mechanical drag
Overload
Underload
Changes in process conditions
Motor or power supply issues
A pump motor draws current in response to load. When a centrifugal pump runs dry or loses prime, the load often drops. Current may fall below the normal running range. This makes undercurrent protection useful for dry-run detection, especially when paired with flow or level measurement.
High current can suggest the opposite problem. A pump may be jammed, bearings may be failing, the impeller may be rubbing, or the pump may be operating at a higher load than expected. In wastewater service, a sudden current spike followed by a trip may point to ragging or a solid object lodged in the pump.
Current is also useful for detecting deterioration over time. If a pump draws slightly more current each month while delivering the same flow and pressure, mechanical friction may be increasing. Possible causes include bearing wear, misalignment, seal drag, or internal rubbing.
Practical advice
Do not treat current as a stand-alone truth source. A low current alarm may suggest dry running, but it becomes much more reliable when level is low or flow is absent. A high current alarm may suggest blockage or mechanical fault, but pressure and vibration help confirm the cause.
Baseline each pump after commissioning or maintenance. Record normal current at known flow, pressure, and speed. This makes later changes easier to interpret.
Vibration detects mechanical deterioration early
Vibration monitoring looks at the mechanical health of the rotating equipment. It helps reveal problems that pressure, flow, and level may miss until the fault has already caused damage.
Vibration measurement helps detect:
Bearing wear
Misalignment
Imbalance
Cavitation
Loose mounting bolts
Soft foot
Coupling problems
Impeller damage
A pump can still meet its flow and pressure targets while its bearings are deteriorating. The process looks fine, but the machine is getting worse. Vibration monitoring gives maintenance teams a way to see that deterioration early.
A rising vibration trend after maintenance may point to misalignment or looseness. A sudden step change may indicate a damaged bearing, broken impeller vane, or build-up on the rotating assembly. Broadband vibration can provide a useful warning, while more detailed vibration analysis can identify specific fault frequencies.
Cavitation can also show up in vibration. If suction conditions are poor, vapour bubbles form and collapse inside the pump. This can sound like gravel passing through the casing and may create unstable vibration. Over time, cavitation damages impellers and reduces performance.
Portable vibration checks can work for smaller or less critical assets. Permanent sensors are more useful for critical pumps, remote sites, or stations that run unattended.
Practical advice
Measure vibration at consistent locations, such as the motor bearing, pump bearing, and casing points recommended by the equipment supplier. Trend values over time rather than relying only on one reading.
Pair vibration with operating conditions. A vibration increase at high flow may have a different cause from vibration that appears at low flow or during start-up.
Run-status monitoring confirms what the pump is doing
Run-status monitoring seems basic, but it is one of the most important signals in any pump station. Operators need to know whether each pump is commanded to run, actually running, available, in fault, or isolated.
Run-status monitoring helps detect:
Failed starts
Excessive cycling
Pumps left in manual mode
Duty and standby imbalance
Control logic faults
Motor trips
Long run times
Short cycling
A run signal can come from a contactor auxiliary contact, variable speed drive status, motor protection relay, or PLC output. The best approach is to distinguish between commanded to run and confirmed running. If the PLC sends a start command but the pump does not confirm running, the system should raise a failed-start alarm.
Run hours are also valuable. If one pump in a duty-standby pair has far more hours than the other, the alternation logic may not be working, or one pump may be unavailable. Uneven run hours can cause one asset to wear out early while the standby pump remains largely untested.
Start counts matter as much as run hours. A pump that runs for long steady periods may be healthier than one that starts hundreds of times in the same period. Excessive cycling can damage motors, starters, drives, couplings, and mechanical seals.
A practical example is a transfer station with two pumps. Pump 1 starts every few minutes during normal operation, while Pump 2 rarely runs. The level trend shows narrow start and stop bands, and the run-status data shows high start counts. The fix may involve widening control bands, correcting alternation, or using speed control to match inflow.
The measurements work best when they are compared
Each measurement is useful on its own, but fault detection improves when signals are read together. A single alarm tells you something changed. A pattern tells you why.
Sign pattern | Likely issue | What to check next |
Pump running, low flow, low current | Dry running or loss of prime | Tank level, suction valve, air leaks, priming system |
Pump running, low flow, high discharge pressure | Blockage or closed downstream valve | Strainer, filters, valve position, discharge line |
Pump running, high current, high vibration | Mechanical fault or jammed impeller | Bearings, coupling, impeller, debris |
Level rising while pump is running | Pump underperformance or inflow overload | Flow, pressure, valve position, pump speed |
Frequent starts with short run time | Excessive cycling | Level setpoints, pump size, control logic |
Rising vibration with normal flow and pressure | Early mechanical deterioration | Bearings, alignment, mounting, lubrication |
This combined view reduces false alarms. For example, motor current alone may suggest dry running, but low level and no flow confirm it. High pressure alone may suggest normal system demand, but high pressure with falling flow points more strongly to a restriction.
Build alarms around normal behaviour
Good alarms start with good baseline data. Before setting tight alarm limits, record how the pump station behaves during normal operation. Capture normal pressure, flow, current, level movement, vibration, starts per hour, and run times.
Then look for limits that protect equipment without overwhelming operators.
Useful alarm types include:
Low-flow alarm after pump start
Low suction pressure alarm
High discharge pressure alarm
Low-low tank level shutdown
High-high tank level alarm
High motor current trip warning
Low motor current dry-run warning
High vibration alarm
Failed-start alarm
Excessive starts alarm
Long-run alarm
Avoid relying only on trip-level alarms. A trip protects equipment at the last moment. A warning gives the team time to inspect, clean, adjust, or schedule maintenance before production is affected.
For remote pump stations, send alarms with enough context to support decisions. “Pump 2 fault” is less useful than a message showing pump status, level, current, and whether flow was proven after start. Context helps the technician arrive with the right tools and spares.
Maintain the instruments as well as the pumps
A monitoring system is only as reliable as its sensors. Dirty, blocked, poorly mounted, or uncalibrated instruments can create false confidence or nuisance alarms.
Pressure ports can block. Level sensors can get fouled. Flow meters can lose accuracy if installed near disturbance or if liners become coated. Vibration sensors can loosen. Current readings can be misinterpreted if drive settings change.
Build simple instrument checks into routine maintenance:
Confirm pressure readings against a known gauge
Check level readings against actual tank level where safe
Inspect sensor faces for build-up
Verify flow readings against pump curves or known transfer volumes
Check vibration sensor mounting
Test failed-start and high-level alarm functions
Review run hours and start counts monthly
The aim is not to create more work. It is to make sure the data used for decisions still reflects the real station.
A practical starting point for better pump station monitoring
For early fault detection, start with the measurements that explain both process performance and machine condition. Pressure and flow show whether the pump is doing useful hydraulic work. Tank level shows whether the station is keeping up and whether control settings are causing cycling. Motor current shows electrical load and can warn of dry running or overload. Vibration shows mechanical deterioration. Run-status monitoring confirms what each pump is actually doing.
The strongest results come from comparing these signals. A pump station that trends pressure, flow, level, current, vibration, and run status can detect dry running, blockages, excessive cycling, and equipment wear much earlier than one that only reports trips.
Start with a baseline, set alarms that reflect real operating conditions, and review trends regularly. The earlier a pump station shows its warning signs, the easier and cheaper the fix usually is.
