Wall-Mount CO₂ Controller with External 4.5M Probe

Wall-Mount CO₂ Controller with External 4.5M Probe

SKU: 7530
$380.00Price
Smart CO₂ monitor and controller with external probe for accurate CO₂ level management in greenhouses, grow rooms, commercial buildings, and indoor environments.

Set Includes:
  • 1 x CO2 Meter (Controller + Sensor)
  • Screws and tapes
  • English Instruction Manual
  • Standard factory packaging

  • Product Description

    Take control of your indoor environment with this Wall-Mount CO₂ Controller, designed for precision CO₂ monitoring and automation in closed spaces. Equipped with a high-accuracy 2-channel NDIR sensor and a 4.5-meter external probe, this unit provides reliable, real-time carbon dioxide measurement and automatic control of connected systems—such as CO₂ generators or exhaust fans.

    Ideal for greenhouses, hydroponics, mushroom farms, schools, hospitals, offices, and more, it offers both “Plant” and “Human” mode control logic to help you optimize air quality or boost plant growth. The user-friendly interface features a dynamic CO₂ chart display, customizable alarms, day/night auto-detection, and programmable thresholds for intelligent automation.

    Key Features & Benefits:

    • Dual-Channel Low Drift NDIR Sensor – Delivers accurate and stable CO₂ measurements

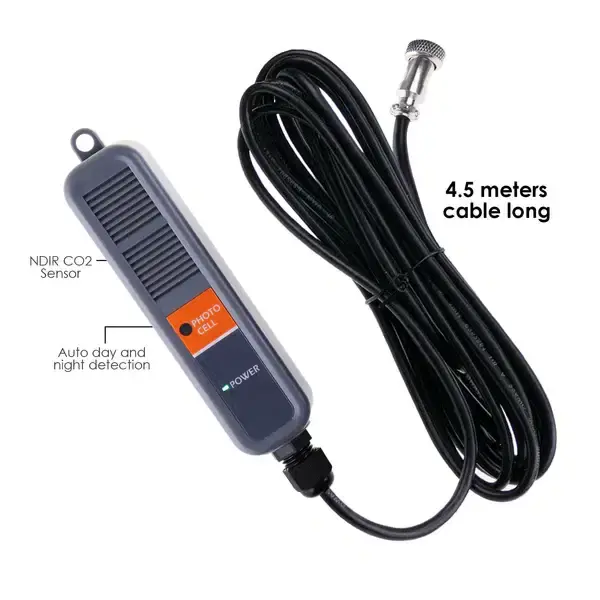

    • External CO₂ Probe (4.5M Cable) – Monitor air in hard-to-reach or closed areas
    • Real-Time CO₂ Monitoring – Displays CO₂ concentration with chart and trend analysis
    • Automatic Max/Min Recall – Tracks and visualizes peaks for performance insight
    • Adjustable Control Modes – Choose Human or Plant Mode for custom automation
    • Built-In CO₂ Alarm – Audible and visual alerts when CO₂ levels exceed set limits

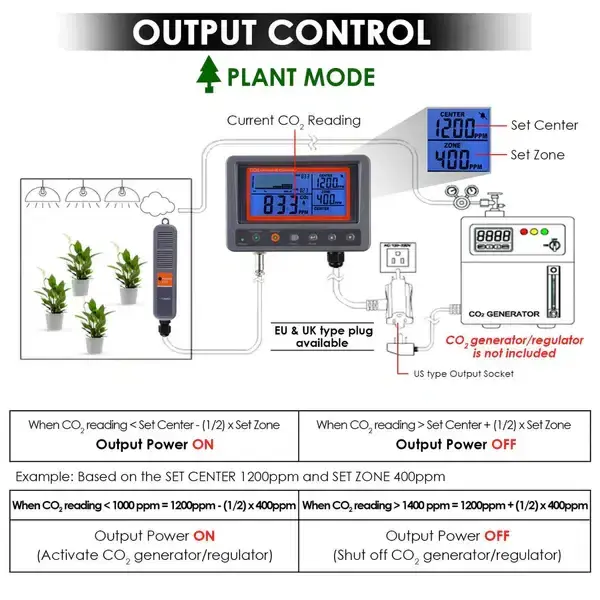

    • Programmable Output Control – Set upper and lower thresholds to activate devices
    • Day/Night Photo Sensor – Automatically overrides CO₂ control for 24-hour use
    • AC Powered (100–240V) – Reliable operation with built-in fuse protection (3kA@300VAC)
    • Backlit Display – Easy to read even in low light environments

    Applications:

    Perfect for use in:

    • Greenhouses & Indoor Farms

    • Hydroponic Grow Rooms

    • Residential & Commercial Buildings

    • Mushroom Cultivation

    • Schools, Offices, Medical Facilities

  • Specifications

    Specifications:

    • Measuring range: 0~5000 ppm
    • Resolution: 1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
    • Accuracy:
      • CO2 below 3000ppm  ±50ppm or ±5% of reading, whichever is greater
      • CO2 above 3000ppm ±7% of reading
    • Warm-up time: 30 seconds
    • Response time CO2:
      • <2min for 63% of step changes or
      • <4.6min for 90% step change
    • LCD size: 47 x 104 mm

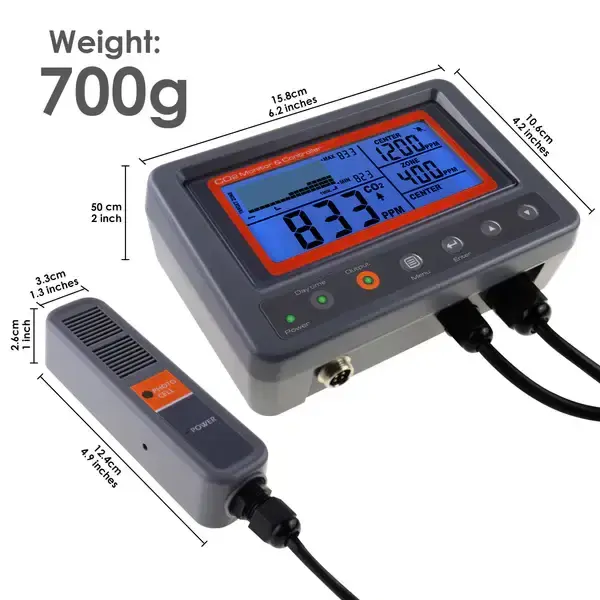

    • Meter size: 158 x 106 x 50 mm
    • Sensor size: 124 x 33 x 26 mm
    • Operating condition: 0~50°C , 5~95% RH (avoid condensation)
    • Storage condition: -20~ 60°C, 5~95%RH (avoid condensation)
    • Power supply: AC100~240VAC
    • Piggyback socket load 5A@250VAC; 10A@120VAC
