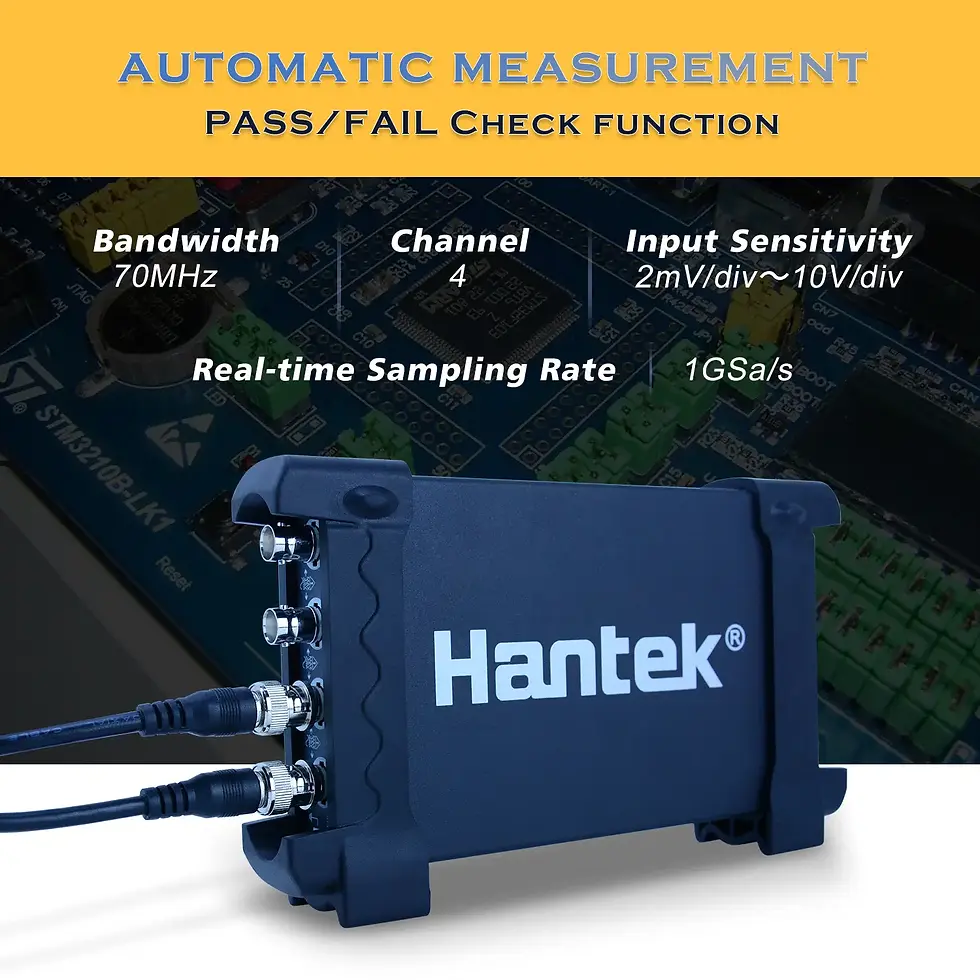

USB Digital Oscilloscope – 4 Channel, 70MHz to 250MHz, 1GSa/s

This USB digital oscilloscope is a high-performance PC-based measurement solution suitable for engineers, technicians, and educators who require multi-channel signal capture without a traditional bench oscilloscope.

Featuring 4 independent analog channels, a 1GSa/s real-time sampling rate, and bandwidth options from 70MHz to 250MHz, the oscilloscope accurately captures fast-changing electrical signals across a wide range of applications. A 64K memory depth supports reliable waveform acquisition for everyday diagnostic and development tasks.

The oscilloscope connects to a Windows PC via USB 2.0, providing plug-and-play operation with a familiar bench-style software interface. Advanced functions such as pass/fail testing, serial bus triggering and decoding, FFT spectrum analysis, and waveform recording make it suitable for both laboratory and field use.

Housed in a rugged anodised aluminium enclosure, the unit offers excellent durability, heat resistance, and portability for workshops, classrooms, and mobile testing environments.

Available Models

• 70MHz: 6074BC

• 100MHz: 6104BC

• 200MHz: 6204BC

• 250MHz: 6254BC

Key Applications

• USB oscilloscope for electronics development

• Multi-channel signal analysis

• Embedded systems and MCU debugging

• Production line testing and maintenance

• Technical education and training

• Field and portable diagnostics

Key Features

• 4-channel USB digital oscilloscope

• Bandwidth options: 70MHz, 100MHz, 200MHz, 250MHz

• 1GSa/s real-time sampling rate

• PC-based operation via USB 2.0

• Pass/fail testing and advanced triggering

• Serial bus trigger and decode

• FFT spectrum analyser

• Waveform record, replay, and averaging

• Data export to CSV, BMP, JPG

• Compact anodised aluminium housing
