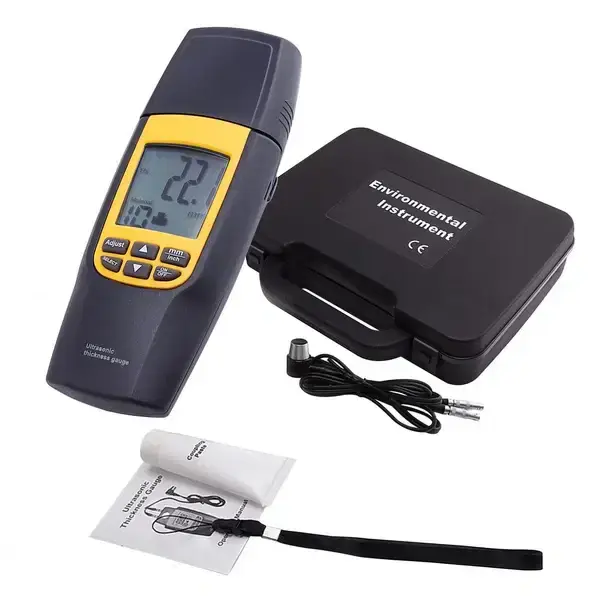

Ultrasonic Thickness Meter Tester Gauge Measure 1.2~220 mm

Ultrasonic Thickness Meter Tester Gauge Measure 1.2~220 mm

SKU: VA8041
$400.00Price
Accurately measure thickness where calipers can’t—ideal for metals, plastics, glass, and more. This ultrasonic thickness gauge is designed for fast, reliable measurements of hard-to-reach or large materials like tanks, pipes, and ship hulls.

 Set Includes
  • 1 x Ultrasonic Thickness Meter
  • 1 x Ultrasonic sensor probe
  • 1 x Coupling Paste
  • 1 x Lanyard (FREE)
  • 1 x Operating Manual
  • 3 x AAA Batteries (FREE)
  • 1 x Protective carrying case (FREE)

        • Product Description

          High-Precision Ultrasonic Thickness Gauge for Metals, Plastics, and Hard Surfaces

          This Ultrasonic Thickness Gauge is engineered to non-destructively measure the material thickness of components where conventional calipers fail. With a measuring range of 1.2 to 220mm and support for wave velocity calibration, it provides accurate readings on a wide variety of materials—from steel and aluminum to plastics, ceramics, and glass.

          Ideal for industrial inspections, NDT testing, and corrosion monitoring, it's suitable for shipbuilding, tank wall testing, boiler maintenance, and pressure vessels. Built-in calibration block ensures precision every time.

          Key Features & Benefits:

          • ✅ Broad Measurement Range – Measures thickness from 1.2–220mm on a wide array of materials

          • ✅ Multi-Material Compatibility – Works on steel, aluminum, copper, brass, glass, plastic, water (20°C), and more

          • ✅ Ultrasonic Velocity Function – Measures wave velocity between 1000–9999 m/s for custom material settings

          • ✅ Adjustable Wave Speed – Manually input material velocity or choose from saved presets (up to 5)

          • ✅ Selectable Units – Switch between millimeters and inches

          • ✅ Instant Reading Time – 0.6 sec response for fast inspections

          • ✅ Coupling Status Indicator – Ensures solid sensor contact for reliable measurements

          • ✅ Built-In Calibration Block – 4.0mm reference metal included for on-the-spot calibration

          • ✅ Low Battery Indicator & Auto Power Off – Saves power and alerts for battery changes

          • ✅ CE Certified – Meets European directives for safety, EMC (2004/108/EC), and accuracy compliance

          • ✅ Compact & Durable – Ideal for field inspections and rugged environments

          Perfect for:
          Shipyards • Oil & Gas • Industrial Maintenance • Manufacturing QA • Aerospace • Automotive • Plumbing & Pipe Systems

          Measure thickness with confidence—even in places your caliper can’t go. This ultrasonic thickness meter is your reliable tool for fast, precise, and repeatable inspections.

        • Specifications

          Specifications

          • Ultrasonic wave frequency: 5 MHz
          • Digital display: 4 digits
          • Measurement Range: 1.2~220mm (steel)
          • Tubes measurement: minimum diameter 20mm x 3mm
          • Ultrasonic wave velocity: 1000~9999m/s
          • Resolution: 0.1mm
          • Accuracy: ± (1% H + 0.1mm)
          • Measurement Rate: 0.6 seconds
          • Power supply: 3 x 1.5V AAA Batteries (Included)
          • Operating Temperature: -10~50°C (14~122°F)
          • Storage Temperature: -40~70°C (-40~158°F)
          • Size: approx. 165 x 60 x 30mm
          • Weight: approx. 210g (batteries and probe included)
          •
