Multi-Channel Temperature Data Logger – 8 to 32 Channel Industrial Recorder

This industrial multi-channel temperature data logger is engineered for high-accuracy thermal monitoring across multiple points simultaneously. With selectable channel configurations (8 to 32 channels), it is suitable for complex systems requiring distributed temperature measurement.

The unit supports ultra-wide temperature ranges (subject to sensor type), enabling measurement from cryogenic levels (-270°C) through to high-temperature furnace applications (+1768°C). High resolution of 0.01°C and basic accuracy of ±0.2°C ±2 digits ensure reliable data acquisition.

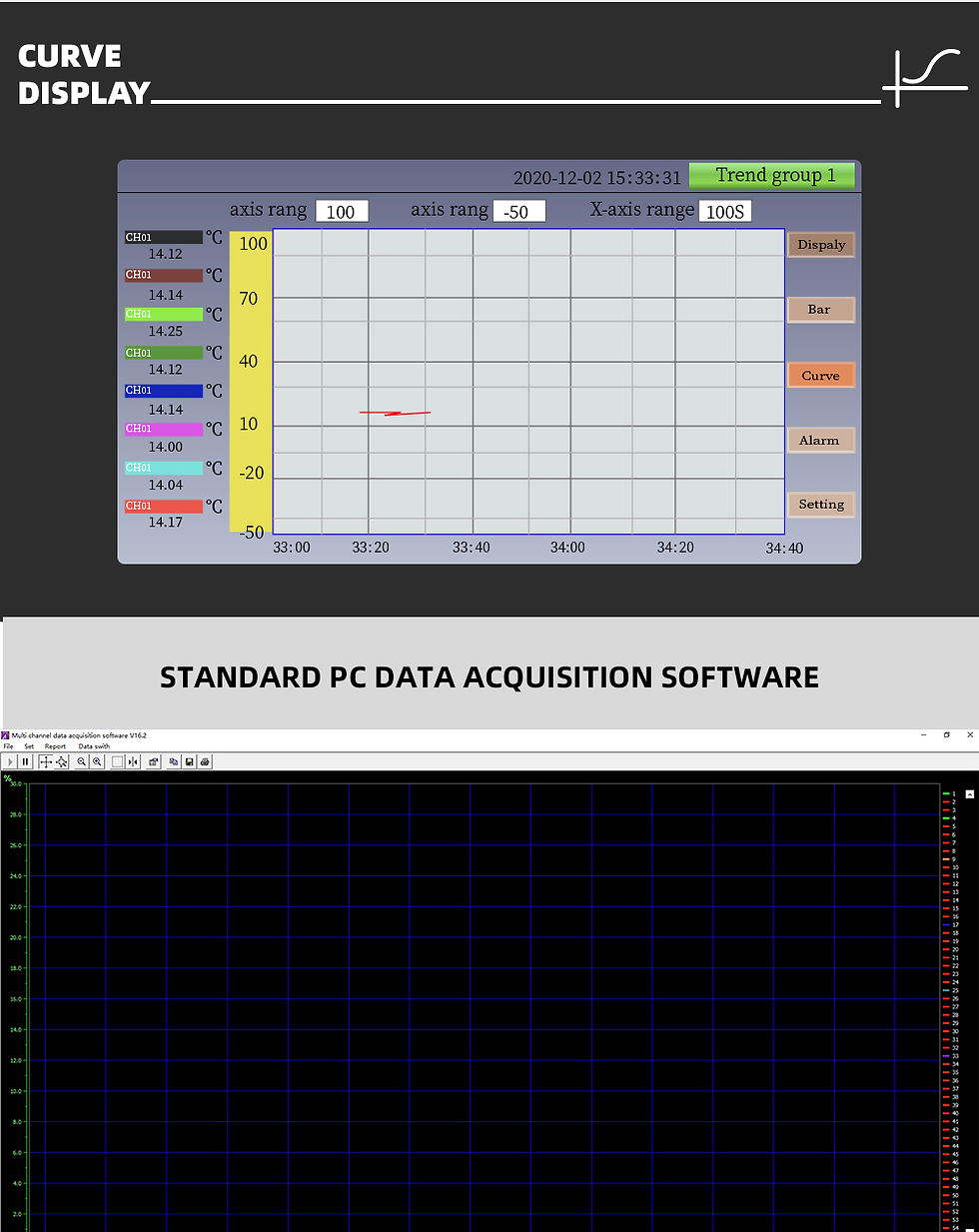

Each channel supports independent error correction, allowing calibration offsets to be applied individually for improved measurement precision. With a large 7-inch (or larger) display, operators can monitor multiple live temperature curves and values in real time.

Fast acquisition speed (10 ms per 10 channels) enables responsive process monitoring in dynamic environments such as:

• Metallurgy and heat treatment

• Furnace profiling and kiln validation

• Aerospace testing

• Laboratory research

• Semiconductor production

• Energy and power plant monitoring

Key Features

• 8 / 16 / 24 / 32 channel configurations

• Ultra-wide temperature range (-270°C to +1768°C)*

• High resolution: 0.01°C

• Basic accuracy: ±0.2°C ±2 digits

• Per-channel error correction

• Large 7-inch (or above) digital display

• High-speed sampling (10 ms / 10 channels)

• Industrial-grade data logging performance

*Temperature range dependent on sensor type (e.g., thermocouple selection).

Channel Options:

• 8 Channel

• 16 Channel

• 24 Channel

• 32 Channel

Temperature Range: -270°C to +1768°C (sensor dependent)
Basic Accuracy: ±0.2°C ±2 digits
Resolution: 0.01°C
Sampling Speed: 10 ms / 10 channels
Display Size: 7 inches or above
Channel Correction: Independent error correction per channel
Battery Included: No
Certification: CE
Origin: Manufactured in Mainland China
High-Concern Chemicals: None

Applications

• Multi-point furnace validation

• Thermal profiling of production lines

• Cryogenic testing

• Research laboratories

• Industrial process control

• Environmental chamber monitoring

Compliance & Notes

• CE marked for electrical compliance

• Installation must comply with local electrical standards

• Temperature performance depends on probe type (thermocouple or RTD)

• Regular calibration recommended for high-accuracy applications

• Not certified for hazardous or explosive environments unless separately specified
