High-Accuracy Thermocouple Data Logger | Industrial & Lab-Grade Temperature

High-Accuracy Thermocouple Data Logger | Industrial & Lab-Grade Temperature

$280.00Price
Track critical temperatures with precision. This professional thermocouple data logger offers a wide -200°C to 1370°C range, 48,000-record memory, USB-C charging, and GLP-compliant password protection—ideal for labs, HVAC, food safety, and industrial maintenance.

Set Includes:
  • 1 x Thermocouple Logger
  • 4 x Class 1 Bead-type Thermocouple Probe
  • 1 x USB Type-C Cable
  • English Instruction Manual
  • Standard Factory Packaging

        • Product Description

          Ensure reliable and accurate temperature monitoring across the most demanding environments with this high-performance thermocouple data logger. With an impressive measurement range from -200°C to 1370°C (-328°F to 2498°F), this instrument is built for lab-grade precision in industrial, scientific, and quality assurance applications.

          Equipped with a large LCD screen, 48,000-record auto-logging memory, and manual logging with timestamp recall, it simplifies both continuous and spot-check temperature logging. Your data is securely stored and easily exported as CSV files, with no software required.

          Ideal for use in laboratories, food safety audits, HVAC inspections, cold chain validation, and industrial maintenance, this temperature logger supports:

          • Programmable high/low alarms with both LED and audible buzzer alerts

          • Password-protected access (GLP-compliant)

          • Optional infrared printer for real-time data printing

          • Backlit display, low battery indicator, and USB Type-C charging

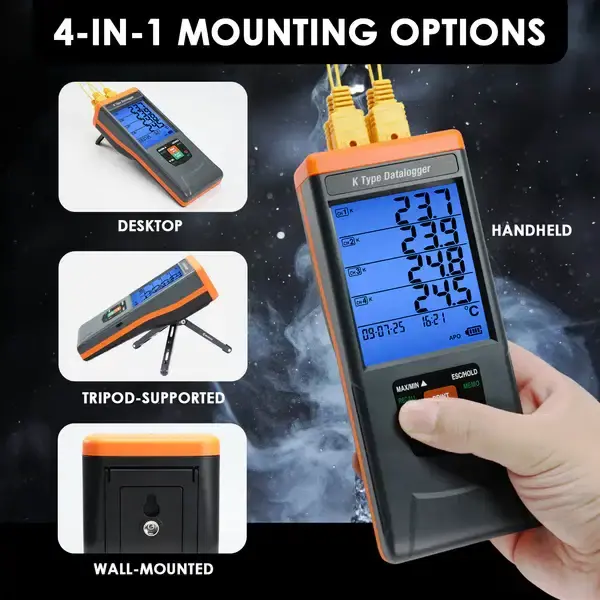

          • Handheld, desktop, or wall mounting for flexibility in every environment

          Whether you need precision monitoring for compliance, quality control, or equipment diagnostics, this rugged, calibrated thermocouple logger delivers the confidence you need—accurate, efficient, and easy to use.

        • Specifications

          • K Temperature Measurement
            • Range: -200~1370℃, -328~2498℉
            • Resolution: Above 1000 ℃/℉ is 1 ℃/℉; Below 1000 ℃/℉ is 0.1 ℃/℉
            • Accuracy: ±0.5℃ for under 1000℃, 1℃ for above; ±0.9℉ for under 1832℉, 1.8℉ for above
          • Backlight: Blue and Red (red for alarm)
          • Buzzer: ~70 dB at 10cm distance
          • Memory:
            • 48,000 records for auto logging
            • 99 records for manual logging
          • Sampling Rate:
            • 1, 2, 5, 10, 15, 30 sec
            • 1, 2, 5, 10, 15, 30, 60, 90 min
          • Start Delay:
            • 0, 1, 5, 10, 30 min
            • 1, 2, 5, and 24 hrs
          • Power: Built-in rechargeable 3.7V Li battery with USB Type C port
          • Consumption:
            • <6.5mA (BLT off); <30mA (BLT on)
            • >120 working hours (BLT/Buzzer off)
          • LCD Size: 60(L)  x  75(W) mm
          • Operating Environment: 10~60℃ ; ＜80%RH
          • Storage Environment: -20~50℃; ＜90%RH

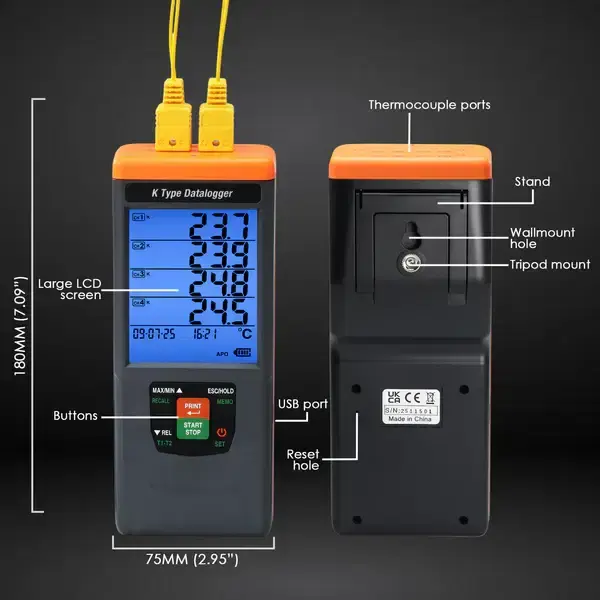

          • Dimension: 180(L)  x  75(W)  x  50(H) mm
          • Weight: ~200gms
