Advanced Ultrasonic Thickness Gauge – 0.75–500mm Range with Data Logging

Advanced Ultrasonic Thickness Gauge – 0.75–500mm Range with Data Logging

SKU: TMG-4001
$650.00Price
Fast, accurate, and portable — this Ultrasonic Thickness Gauge delivers non-destructive measurement for metals and other ultrasonic-conductive materials, even when coated. Ideal for industrial inspections, QA, and construction applications.

SET INCLUDES
1 x Main Unit
1 x Probe
1 x Probe Cable
1 x Operation Manual
1 x Carrying case

        • Product Description

          High-Precision Ultrasonic Thickness Tester with Smart Data Management

          This intelligent Ultrasonic Thickness Gauge is built for professionals who require accurate, non-destructive thickness measurement of metals, coated surfaces, and other ultrasonic-conductive materials like concrete slabs. With a measurement range of 0.75 to 500mm, this rugged, portable tool is perfect for diverse industries including construction, pipelines, shipbuilding, petrochemical, and aerospace.

          Key Features & Benefits:

          • ✅ Wide Measurement Range:
            Accurately measures material thickness from 0.75mm to 500mm using ultrasonic pulse-echo technology

          • ✅ Coating-Compatible:
            Measures metal thickness beneath coatings (2–25mm) without needing to remove surface layers

          • ✅ Smart Calibration Tools:

            • Advanced Auto Probe Zero Calibration for real-time accuracy

            • Calibrate anytime, anywhere with ease

          • ✅ Massive Data Storage:

            • Store up to 100,000 data points

            • Organize readings into 1,000 files with 1,000 data per file

          • ✅ Powerful Statistical Analysis:

            • Live stats: Max, Min, Standard Deviation

            • Document stats: Average, Max, Min, Mean Square Error

          • ✅ User-Friendly Interface:

            • Icon-style menu with intuitive navigation

            • Scroll bar indicator shows current mode/function

            • Real-time Probe Coupling Indicator ensures consistent readings

          • ✅ High Accuracy & Dual Units:
            Choose precision levels of 0.1mm or 0.01mm / 0.01in or 0.001in depending on your application

          • ✅ Long Battery Life:
            Extended use with 200 hours standby time — perfect for long field sessions

          • ✅ Threshold Alarm Function:
            Set upper and lower limit alerts to monitor deviations instantly

          Ideal for:
          Pipeline maintenance • Concrete slab thickness detection • Metal fabrication • Aerospace inspections • Heavy machinery QA • Tank wall and pressure vessel monitoring

          Trust this high-performance gauge to deliver accurate, repeatable, and reliable measurements — every time.

        • Specifications

          SPECIFICATIONS

          • Principle: Ultrasonic(Pulse-Echo/Echo-Echo)
          • Measuring Range: Normal: 0.75-40mm, Coating: 2-25mm
          • Resolution: 0.1mm(> 100mm)/0.01mm(<100mm)
          • Accuracy: ±(0.5%H+0.01)mm
          • Velocity: 1000~9999m/s
          • Calibration: Auto Sound-Velocity-Calibration
          • Auto Probe Zeroing Calibration
          • Pulse: 150V Negative Pulse
          • Receiver: Gain: High/Low/Auto
          • Bandwidth: 0.5-15MHz
          • Indicator: Probe Connection Indicator
          • Coupling Indicator
          • DISPLAY LCD, High-Contract 128*64
          • Beautiful printed characters, Number,
          • Symbol, High Brightness EL Backlight
          • Thickness Logging: 1000 data sets/group, liner
          • Update Rate: Single Point: 5 times/s
          • Scan Mode: 25times/s
          • Input/Output: Probe Cable: LEMO 00 (C5) x2
          • Communication: USB
          • Language: Chinese /English
          • Unit: mm/inch
          • Measuring: Result Showing: Online Statistic/Velocity
          • Statistic: Online:Max Min ,Standard Devration
          • File: Max, Min AVG, mean square error
          • Alarm: Threshold Acoustooptical Alarm
          • Memory: Files: 1000 groups
          • USB Storage Connection USB is allowed, convenient to read thickness values
          • Environment Temperature:-20°C~70°C
          • Humidity:5%~90%
          • Power Source: 4 x 1.5V AAA battery
          • 200 hours Working Time

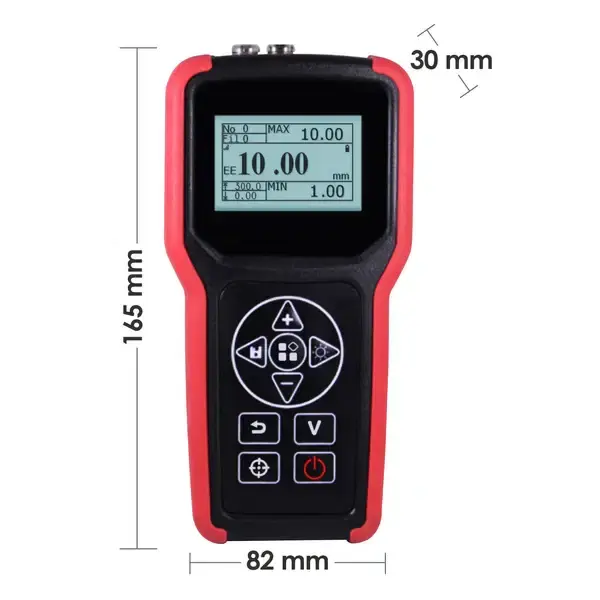

          • Dimension (mm): 165×82×30
          • Weight: 250g
          •
