ACREL Multifunction Power Meter | AC Electrical Energy Monitoring Meter

The ACREL Multifunction Power Meter | AC Electrical Energy Monitoring Meter is an advanced multifunction power meter designed for monitoring, measuring, and analyzing electrical parameters in three-phase power systems. It combines comprehensive electrical measurement with advanced power quality monitoring, communication, and data management capabilities in a single device.

The ProSight Multifunction Power Meter | AC Electrical Energy Monitoring Meter can measure important electrical parameters such as voltage, current, active power, reactive power, apparent power, power factor, frequency, and electrical energy. Depending on the selected configuration and installed modules, it can also provide advanced functions such as harmonic analysis, voltage and current unbalance monitoring, demand measurement, maximum demand recording, and power quality analysis.

The meter is designed for integration into modern electrical monitoring and energy management systems. Its communication capabilities allow measurement data to be transmitted to supervisory computers, SCADA platforms, energy management software, and building management systems.

How Does It Work?

• The ProSight Multifunction Power Meter | AC Electrical Energy Monitoring Meter is connected to the monitored three-phase electrical system using appropriate voltage and current inputs.
• It continuously measures electrical voltage and current from the monitored circuits.
• The meter processes these signals to calculate active, reactive, and apparent power.
• It monitors power factor and frequency to provide information about electrical system operating conditions.
• Energy measurements are recorded to help users analyze electrical consumption over time.
• Advanced measurement functions can provide information about harmonic distortion, voltage and current unbalance, and other power quality conditions.

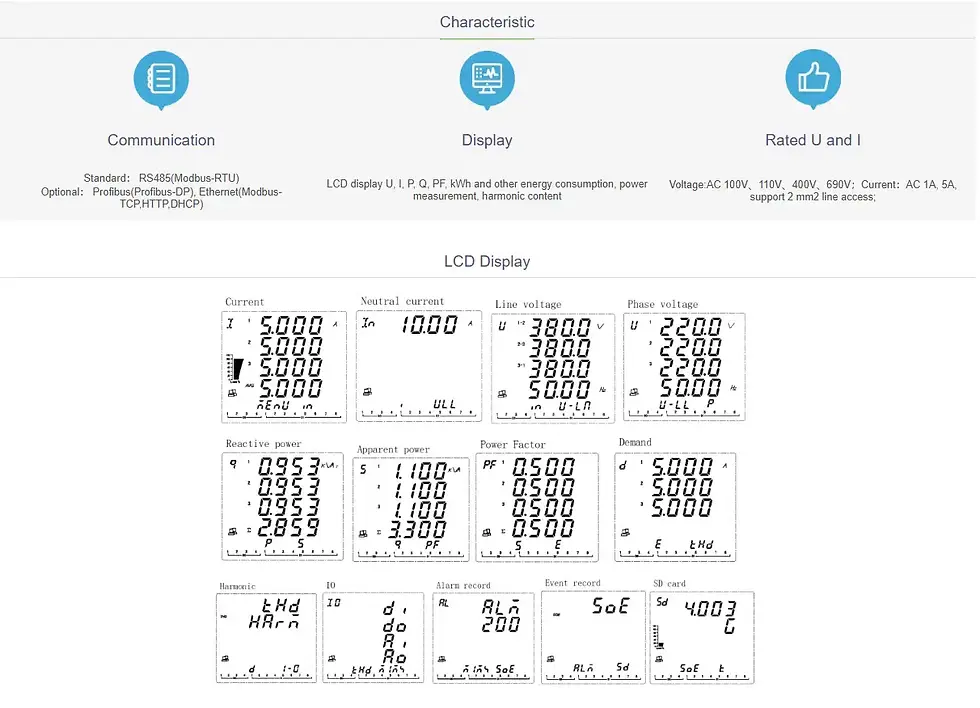

• The integrated display allows operators to view electrical parameters locally.
• Through communication interfaces such as RS485 Modbus-RTU and applicable Ethernet communication options, data can be transmitted to centralized monitoring platforms.
• Optional expansion modules can extend the meter's capabilities with additional communication, input, output, or other functional interfaces, depending on the selected configuration.
• The meter can therefore function as part of a broader energy management, power monitoring, or electrical automation system.

Why Choose this Product?

• Comprehensive electrical measurement – Monitors a wide range of electrical parameters using a single multifunction device.
• Advanced power quality analysis – Provides detailed information that can help identify harmonic distortion and other electrical system issues.
• High measurement accuracy – Designed for precise monitoring of electrical parameters and energy.
• Real-time monitoring – Provides immediate visibility into electrical system operating conditions.
• Flexible communication – Supports integration with centralized monitoring systems through available communication interfaces.
• Expandable architecture – Modular options allow the meter to be adapted to different monitoring and communication requirements.
• Large color display – Provides clear visualization of measurement values and operating information.
• Suitable for centralized management – Measurement data can be integrated into SCADA and energy management platforms.
• Broad application range – Suitable for industrial power systems, commercial facilities, data centers, and electrical distribution applications.

Benefits

• Provides comprehensive visibility into electrical system performance.
• Helps users understand energy consumption and power usage patterns.
• Supports identification of abnormal electrical conditions.
• Helps detect harmonic distortion and potential power quality problems.
• Supports energy efficiency analysis and electrical system optimization.
• Enables centralized monitoring through communication interfaces.
• Reduces the need for multiple separate measurement devices.
• Provides convenient local access to electrical measurements through the display.
• Supports integration with SCADA, EMS, and building management systems.
• Flexible modular design allows the system to be adapted to application requirements.
• Helps improve electrical system reliability and operational awareness.
• Suitable for demanding industrial and commercial monitoring environments.
