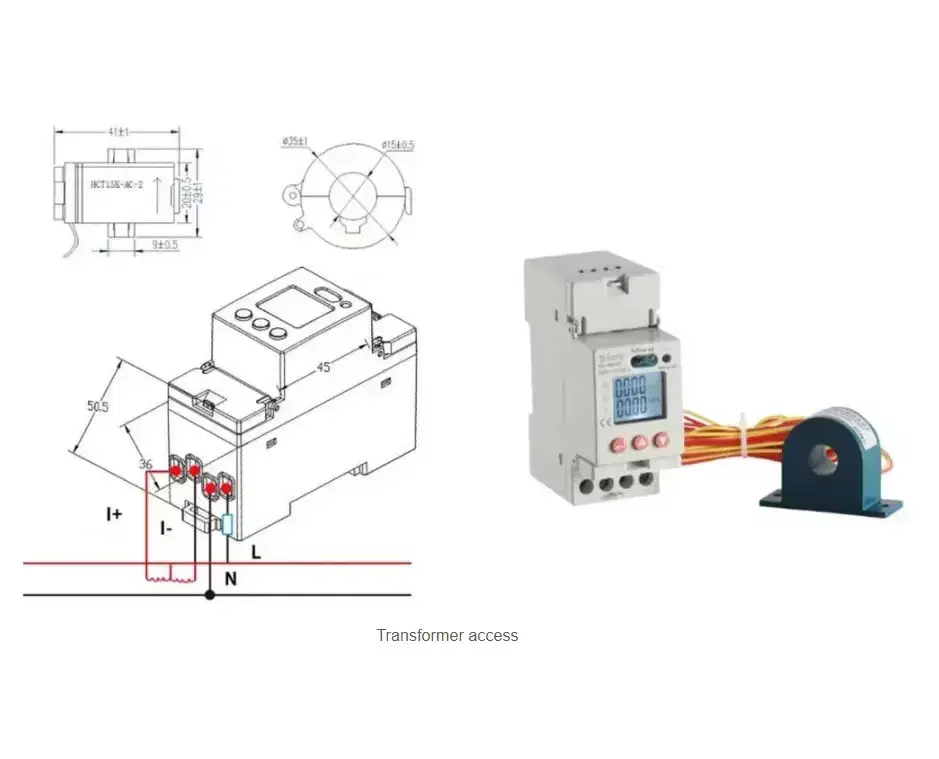

ACREL DIN Rail Energy Meter | Single Phase Multi Function Meter

ACREL DIN Rail Energy Meter | Single Phase Multi Function Meter

SKU: ADL100-ET
$192.00Price
ACREL DIN Rail Energy Meter | Single Phase Multi Function Electric Energy Meter  is a single-phase multi-function DIN-rail energy meter designed for electricity measurement, sub-metering, and energy management in AC power systems. It is suitable for commercial, industrial, and energy monitoring applications where accurate electrical consumption measurement and remote data communication are required. Key features include AC 220V operation, 10(60)A or 20(100)A current options, Class 1 active energy accuracy, LCD display, configurable parameters, and RS485 Modbus-RTU communication.

The ACREL DIN Rail Energy Meter | Single Phase Multi Function Electric Energy Meter is a single-phase multi-function electric energy meter designed for measuring and monitoring electricity consumption in single-phase AC electrical systems. Its compact form factor and 35 mm DIN-rail mounting make it suitable for installation inside electrical distribution boards, control cabinets, energy sub-metering panels, and other space-constrained applications.

The meter is available with 10(60)A and 20(100)A current ratings, allowing users to select a suitable version based on the electrical load being monitored. It provides Class 1 active energy measurement accuracy and includes an LCD display for convenient local viewing. The meter also supports parameter setting and RS485 communication using the Modbus-RTU protocol, enabling integration with centralized energy management and power monitoring systems.

How Does It Work?

  • ProSight DIN Rail Energy Meter | Single Phase Multi Function Electric Energy Meter is connected to a single-phase AC electrical circuit.
  • It measures the electrical energy consumed by the connected load.
  • The meter processes the measured electrical data to calculate and record energy consumption.
  • Measurement information can be viewed locally through the LCD display.
  • Users can configure relevant meter parameters to suit the installation and monitoring requirements.
  • Through the RS485 interface and Modbus-RTU protocol, the meter can communicate with compatible monitoring systems, gateways, PLCs, or energy management platforms.
  • The compact DIN 35 mm mounting design allows the meter to be installed directly inside electrical distribution panels and control cabinets.

Why Choose this Product?

  • Flexible current capacity – Available in 10(60)A and 20(100)A versions for different single-phase load requirements.
  • Accurate energy measurement – Class 1 active energy accuracy supports reliable electricity consumption monitoring.
  • Remote communication – RS485 with Modbus-RTU enables connection to centralized monitoring and energy management systems.
  • Local display – The LCD provides convenient access to energy readings and meter information.
  • Configurable parameters – Supports parameter setting for adapting the meter to application requirements.
  • Space-saving installation – DIN 35 mm mounting makes it suitable for compact electrical distribution panels.
  • Energy management ready – Can be incorporated into broader energy monitoring and management systems for centralized data collection.

Benefits

  • Helps users monitor electricity consumption more effectively.
  • Supports accurate energy sub-metering for individual circuits and loads.
  • Provides a convenient local interface through the LCD display.
  • Enables remote data collection through RS485 Modbus-RTU communication.
  • Helps reduce manual meter-reading requirements when integrated into automated monitoring systems.
  • Supports centralized energy management and consumption analysis.
  • Offers flexible current options for different electrical load capacities.
  • Saves installation space through compact DIN-rail mounting.
  • Suitable for integration into modern building and industrial energy monitoring systems.
