Connect Existing Instruments to the Cloud Without Replacing Sensors

Many sites already have good measurement devices in place. The flow meter is counting water, the pressure transmitter is proving the pump is doing its job, the tank level sensor is keeping product where it should be, and the energy meter is showing what the equipment is using.

The problem is not always the instrument. Often, the problem is access.

A reading that only appears on a local display, inside a control panel, or on a PLC screen is useful when someone is standing nearby. It is far less useful when the plant is unattended, the pump station is remote, or the maintenance team looks after several sites across a wide area.

That is where cloud connectivity can help. With the ProSense IoT Gateway and ProSight, many existing industrial instruments can send data to the cloud using signals they already provide, such as 4–20 mA, RS485, and pulse outputs.

The key point is simple: remote monitoring can often be achieved without new instrumentation.

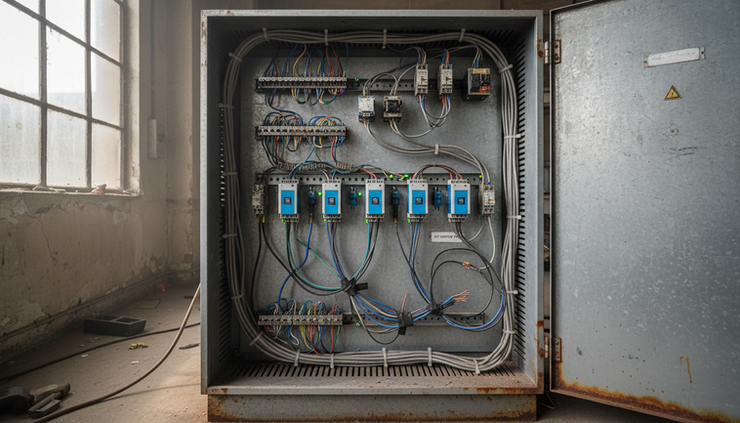

Cloud monitoring can start with instruments already installed on site.

Why keeping existing sensors is often the smarter move

Replacing instruments sounds clean on paper. Install new devices, add cloud-ready hardware, and move on. In real sites, that approach can create extra work, downtime, and risk.

Most brownfield factories, pump stations, treatment plants, farms, and commercial facilities have instruments that were selected for good reasons. They suit the process. They fit the pipework or tank. They have already been commissioned. Operators know what the readings mean.

If those instruments are still accurate and reliable, there is strong value in keeping them.

Using existing sensors can help reduce:

• Installation time

  No need to remove a working meter or transmitter just to gain remote visibility.




• Process interruption

  Many applications cannot easily stop for instrument replacement, especially water, wastewater, irrigation, refrigeration, compressed air, and production services.




• Engineering uncertainty

  The current instrument may already have the correct range, process connection, approvals, and scaling.




• Training burden

  Operators and maintenance teams can keep working with values and devices they already understand.




• Project cost

  Cloud access can be added around existing measurement points, rather than starting again from the field device.




This approach is especially useful for staged upgrades. A site might begin by monitoring three pump stations, then add tank levels, flow totals, or energy use later. The investment follows the need, instead of requiring a full instrumentation replacement project from day one.

The instruments already on site may have the signals you need

Industrial instruments are often built to share data. Even older devices may provide a signal that can be connected to a gateway.

That signal might not look like a modern cloud connection, and that is fine. A gateway sits between the field instrument and the cloud platform. It reads the field signal, turns it into usable data, and sends it to ProSight for remote viewing, trending, alarms, and reporting.

Common examples include the following.

Flow meters

Flow meters are used across water transfer, chemical dosing, irrigation, compressed air, wastewater, batching, and building services. Many provide one or more outputs, such as:

• 4–20 mA for flow rate

• Pulse output for totalised volume

• RS485 for digital values and meter status




A flow meter at a pump station might show live flow locally, while also sending a pulse for every set volume. By connecting that pulse or analogue output to the ProSense IoT Gateway, the site can track usage remotely in ProSight. This helps teams see if a pump is moving the expected volume, if demand has changed, or if flow continues when it should have stopped.

Pressure transmitters

Pressure transmitters are common on pump discharge lines, filters, tanks, compressed air systems, irrigation mains, and treatment processes.

A simple 4–20 mA pressure transmitter can be one of the easiest devices to bring online. The gateway can read the signal and ProSight can show the pressure trend over time. That trend often says more than a single local gauge reading.

For example, pressure that slowly rises across a filter can show fouling. Pressure that drops overnight might point to a leak, a stopped pump, or an open valve. A remote alarm can alert the team before the issue becomes a site visit or service failure.

Tank level sensors

Tank level readings are valuable in water storage, chemical tanks, fertiliser systems, fuel storage, trade waste, and commercial plant rooms.

Many tank level sensors output 4–20 mA. Some use ultrasonic, hydrostatic, radar, or other sensing methods, but the output signal may be the same. If the instrument already provides a stable level reading, cloud connectivity can make that value visible from anywhere.

This can support:

• Low-level alerts before a supply runs out

• High-level alerts before an overflow

• Fill and drawdown trends

• Delivery planning

• Pump control checks




A farm, for example, may already have a tank level sensor wired to a local display. Connecting that existing signal to the cloud can give staff a remote view of water storage without changing the tank hardware.

Energy meters

Energy meters are increasingly valuable in factories, commercial facilities, farms, and treatment plants. They can show consumption, demand patterns, equipment runtime, and the effect of operational changes.

Many meters provide RS485 communications, pulse outputs, or both. A pulse output may represent a set amount of energy used. RS485 may provide richer data, depending on the meter and protocol.

By bringing energy data into ProSight, a facility can compare usage across pumps, buildings, shifts, or process areas. Even basic remote visibility can help identify equipment left running, unusual demand, or a change in plant behaviour.

Flow and pressure readings are ideal starting points for remote monitoring.

How 4–20 mA, RS485, and pulse signals fit into cloud monitoring

The best connectivity path depends on the instrument and what data matters. The ProSense IoT Gateway can be matched to existing outputs, then ProSight turns those signals into values that people can view and act on.

The table below gives a practical overview.

Signal type	What it usually carries	Common instruments	Why it is useful
4–20 mA	A live process value	Pressure transmitters, level sensors, flow meters, temperature transmitters	Simple, widely used, well understood
RS485	Digital data from one or more devices	Energy meters, flow meters, controllers, analysers	Can carry several values, totals, and status points
Pulse	Counted events or totals	Flow meters, energy meters, water meters	Good for usage, volume, runtime, and totalising

4–20 mA is ideal for live process values

The 4–20 mA signal is one of the most common industrial outputs. It usually represents a scaled value.

For example:

• 4 mA might equal 0 kPa

• 20 mA might equal 1,000 kPa




Or:

• 4 mA might equal an empty tank

• 20 mA might equal a full tank




Once the scale is known, the gateway can read the current signal and ProSight can display the engineering value, such as pressure in kPa, level in metres, or flow in L/min.

This is useful for applications where the live value matters. A local reading becomes a remote trend. A high or low value can become an alarm. A process condition that was once hidden between site visits becomes visible.

RS485 is useful when more data is available

RS485 is a common physical communication method in industrial equipment. Many devices use it to share multiple values. Energy meters, variable speed drives, intelligent flow meters, and process controllers may offer RS485 connections.

The value of RS485 is that one connection can often provide more than one measurement. Depending on the instrument, it may include:

• Live value

• Total

• Status

• Alarms

• Device data

• Multiple channels




This makes RS485 useful when the current instrument already has digital data that would be hard to capture through a single analogue output. An energy meter, for example, may provide more than just a pulse count. It may provide voltage, current, power, energy, and frequency, depending on its model.

Pulse signals are simple and powerful

Pulse outputs are common for totalising applications. Each pulse represents a known amount.

A water meter might send one pulse per 10 litres. An energy meter might send one pulse per set number of watt-hours. A flow meter might send pulses that can be counted to calculate total volume.

Pulse signals work well when the key question is, “How much has passed through?” or “How much has been used?”

They are especially useful for:

• Water usage

• Chemical dosing totals

• Irrigation volumes

• Energy consumption

• Pump runtime counts

• Batch totals




A pulse signal may look basic, but it can deliver valuable cloud data when counted, time-stamped, and displayed in ProSight.

A gateway can translate field signals into data for ProSight.

Where this approach works well

Connecting existing instruments makes sense anywhere a site has working measurement points but limited remote access.

Brownfield factories

Factories often grow over time. Equipment is added, control panels change, and older measurement devices keep doing their job. Cloud monitoring can bring selected values into one view without replacing whole systems.

Useful starting points include:

• Compressed air pressure

• Water or chemical flow

• Production tank levels

• Energy use by area

• Cooling or process water readings




This gives maintenance and operations teams a clearer picture of plant behaviour without disturbing proven equipment.

Pump stations

Pump stations are strong candidates for remote monitoring because they may be unattended for long periods. A few signals can tell a useful story.

Pressure shows whether the pump is building head. Flow shows whether liquid is moving. Tank or wet well level shows whether the station is keeping up. Energy data can show when pumps run and how hard they work.

With ProSight, these values can be viewed remotely, and alarms can flag abnormal conditions.

Treatment plants

Water and wastewater treatment plants often rely on a mix of new and older instruments. Some are connected to control systems, while others remain local.

Existing level sensors, flow meters, pressure transmitters, and energy meters can help provide remote visibility for process checks, storage, transfer, and equipment operation. This can support faster response when conditions change after hours or across multiple sites.

Farms and irrigation systems

Farms often cover large areas, and staff cannot always check every tank, bore, pump, and irrigation line in person.

Existing meters and sensors may already show:

• Bore flow

• Tank level

• Pump pressure

• Fertiliser dosing volume

• Energy use

• Generator or pump runtime




Using current instruments can make remote monitoring practical without redesigning the whole system.

Commercial facilities

Commercial buildings, shopping centres, schools, aged care facilities, and large mixed-use sites often have plant rooms with useful signals already available.

Energy meters, water meters, pressure transmitters, and tank level sensors can help facilities teams keep an eye on plant performance. This is especially helpful when maintenance staff manage several locations.

What information is needed before connecting an existing instrument

A successful connection starts with identifying what the instrument can output. This does not need to be complicated, but the details matter.

For each instrument, gather:

• Model number

  The exact model helps confirm available outputs, scaling, wiring, and communication options.




• Output signal

  Check whether the instrument provides 4–20 mA, RS485, pulse, relay, or another signal.




• Application details

  Describe what the instrument measures, the range, the units, and why the value matters.




• Power and wiring details

  If available, note the supply voltage, loop power arrangement, cable distance, and where the signal is currently wired.




• Desired cloud result

  Explain whether the goal is live monitoring, alarms, totalising, trend history, reporting, or a combination.




A photo of the nameplate, terminal strip, and local display can also help. The more clearly the existing setup is understood, the easier it is to recommend a practical path to ProSight.

Remote monitoring does not need to start with a full upgrade

Cloud projects can stall when they are treated as full replacement projects. That is rarely the only option.

Many sites can start with one or two valuable signals. A pump station might begin with discharge pressure and flow total. A farm might begin with tank level. A treatment site might begin with inlet flow. A commercial facility might begin with energy use on a main board.

Once the first points are in ProSight, the next steps become easier. Teams can see the value of remote data, refine alarm levels, and decide which extra instruments should be connected later.

This staged approach keeps the project practical. It also respects the investment already made in the site’s instruments.

Remote sites can often be monitored using sensors already in the field.

Send ProSense your instrument details and start from what you already have

If a flow meter, pressure transmitter, tank level sensor, energy meter, or other instrument is already working on site, it may be ready for cloud monitoring through the ProSense IoT Gateway and ProSight.

The next step is to check the details.

Send ProSense the model number, output signal, and application details for each existing instrument. Include photos or datasheets if they are available. ProSense can then help identify a tailored connectivity option for 4–20 mA, RS485, pulse, or other practical signal paths.

Remote monitoring does not have to mean pulling out good sensors. In many cases, the fastest and most sensible path is to connect the instruments already doing the job, then make their data visible wherever it is needed.
