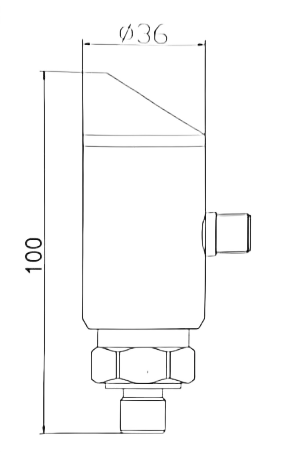

Intelligent Digital Pressure Switch – PNP/NPN & 4–20mA Output, Up to 1000 Bar

Intelligent Digital Pressure Switch – PNP/NPN & 4–20mA Output, Up to 1000 Bar

$281.00Price
Select
M12-4Pin-SP1-0-10V
M12-4Pin-SP1-4-20mA
M12-4Pin-SP1-SP2
M12-5Pin
Measuring Range
0-0.8Mpa
0-0.5Mpa
0-1.2Mpa
0-1Mpa
0-2.5Mpa
0-1.6Mpa
0-4Mpa
0-3Mpa
0-0.2Mpa
0-100Mpa
0-80Mpa
-1-1bar
0-25Mpa
0-60Mpa
0-40Mpa
0-8Mpa
0-10Mpa
0-6Mpa
0-12Mpa
0-16Mpa
Quantity
Industrial intelligent pressure switch with 4–20mA output and selectable PNP/NPN switching. Designed for hydraulic, pneumatic, water, and process control applications from vacuum to high-pressure systems up to 1000 bar.

This Intelligent Digital Pressure Switch combines pressure measurement, switching control, and analogue output in a single compact device.

With a wide pressure range from -0.1 MPa to 100 MPa (up to 1000 bar), the unit is suitable for both vacuum and high-pressure industrial systems.

It features:

  • 4–20mA analogue output for PLC, SCADA, and BMS integration

  • Selectable PNP/NPN switching output

  • 4-digit digital display (-1999 to 9999)

  • Fast response time <4ms

  • High accuracy ≤ ±0.5%FS

Constructed with a 304 stainless steel process interface, the switch is suitable for water, hydraulic oil, compressed air, and compatible industrial media.

Typical applications include:

  • Hydraulic systems

  • Pneumatic control systems

  • Pump protection and control

  • Water treatment plants

  • Industrial process monitoring

  • Mining and heavy industry

  • Automation and OEM equipment

With IP65 protection and high vibration and shock resistance, the unit is designed for demanding industrial environments.
