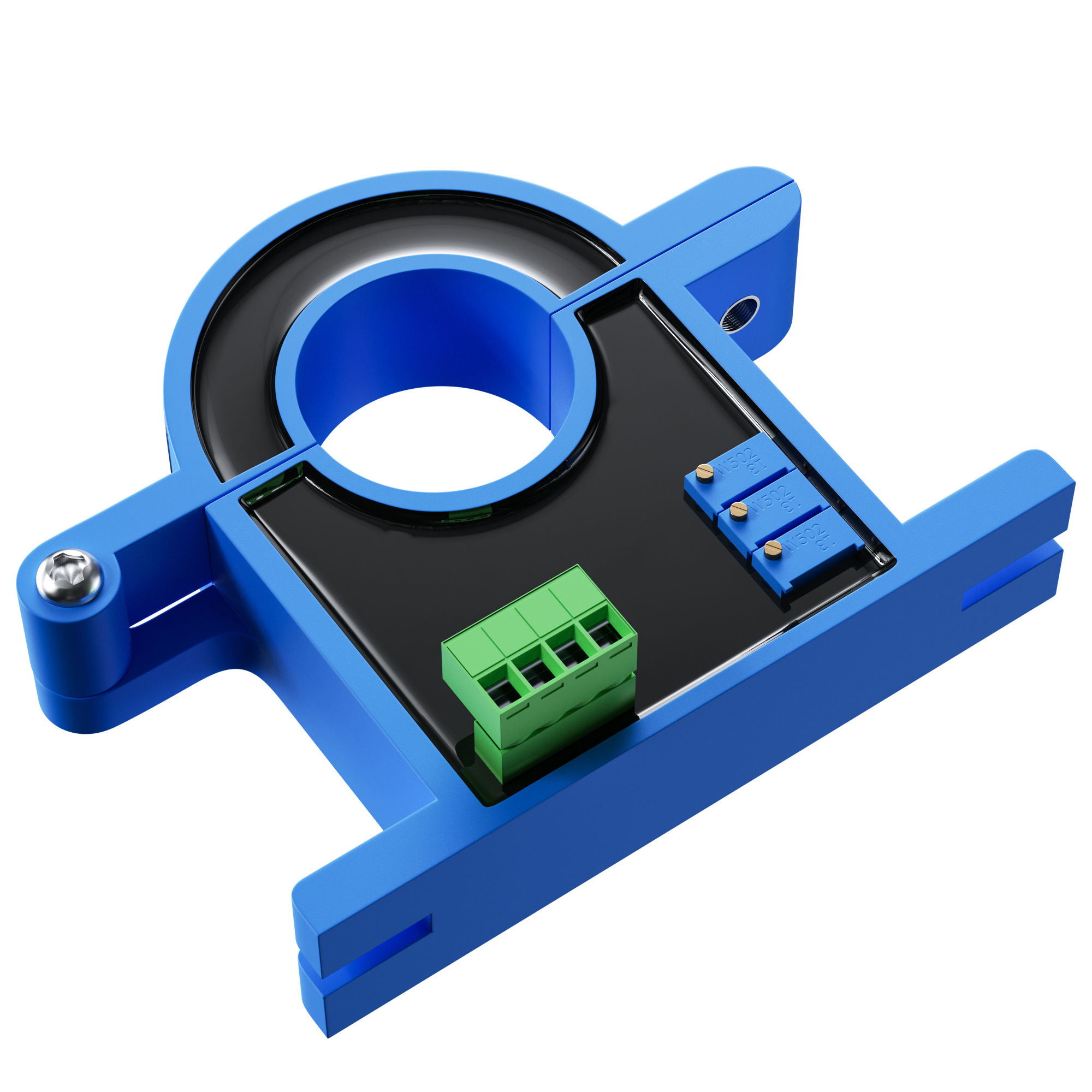

Hall Effect AC/DC Current Transmitter – 50A to 2000A, 4–20mA / 0–10V / RS485

Hall Effect AC/DC Current Transmitter – 50A to 2000A, 4–20mA / 0–10V / RS485

$123.99Price
Size
Output RS485
Output 4-20mA
Output 0-10V
Output 0-5V
Voltage
Measuring Range
Input AC 0-30A
Input AC 0-50A
Input AC 0-100A
Input AC 0-200A
Input AC 0-300A
Input AC 0-400A
Input AC 0-500A
Input DC 0-30A
Input DC0-50A
Input DC 0-100A
Input DC 0-200A
Input DC 0-300A
Input DC 0-400A
Input DC 0-500A
Quantity
High-accuracy Hall-effect AC/DC current transmitter with selectable ranges from 50A to 2000A. Supports 4–20mA, 0–10V, 0–5V, and RS485 outputs for industrial monitoring and automation systems.

  • This Hall-effect current transmitter is designed for precise measurement of both AC and DC currents in industrial power systems. Supporting wide current ranges from 50A up to 2000A (configuration dependent), it is suitable for heavy-load applications such as power distribution, motor control, renewable energy systems, and industrial automation.

    Using non-contact Hall sensing technology, the device provides stable and linear measurement performance while maintaining electrical isolation between the primary conductor and output circuits.

    The transmitter converts measured current into standard control signals including:

    • 4–20mA

    • 0–10V

    • 0–5V

    • RS485

    With 0.3% accuracy class, the unit delivers reliable monitoring performance for demanding environments. Multiple aperture (halo) diameter options allow installation on various conductor sizes.

    The robust housing supports operation in temperatures from –30°C to +70°C, making it suitable for industrial panels, substations, and outdoor enclosures (when properly protected).

  • Electrical

    Measurement Type

    • AC & DC Current

    Input Current Range

    • 50A – 2000A (model dependent)

    Accuracy Class

    • 0.3%

    Output Signals

    • 4–20mA

    • 0–10V

    • 0–5V

    • RS485

    Supply Voltage

    • DC 24V

    Mechanical

    Aperture (Halo Diameter) Options

    • 20 mm

    • 25 mm

    • 38 mm

    • 50 mm

    • 75 mm

    Dimensions

    • Approx. 20 × 9 × 7 cm

    Installation Type

    • Panel-mounted current transducer

    Environmental

    Operating Temperature

    • –30°C to +70°C

    Application Areas

    • Industrial automation

    • Power distribution systems

    • Motor and drive monitoring

    • Renewable energy systems

    • Battery storage monitoring

    • Energy management systems

    Country of Manufacture

    • Mainland China

    Hazardous Substances

    • No declared high-concern chemicals

    Compliance

    • CE compliant

    • FCC compliant

    • RoHS compliant

    Designed for industrial current measurement and signal conversion applications in accordance with applicable EMC and material standards.

    Important Notice

    • Select correct current range and aperture size before installation.

    • Ensure output signal type matches the receiving control system.

    • Installation must be carried out by qualified personnel.

    • Monitoring device only — not a protective relay or breaker substitute.
