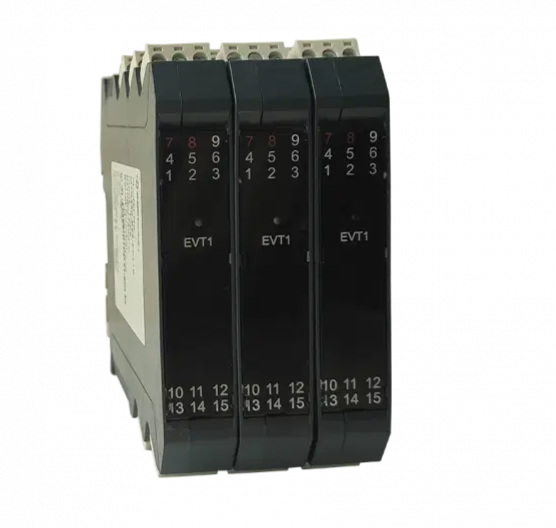

ProSight DIN Rail Programmable Temperature Transmitter – Universal Input

ProSight DIN Rail Programmable Temperature Transmitter – Universal Input

From $240.00Sale Price
Input/Output
Single out
Dual out
Dual In/Out
Single+RS485
Programing Kit
None
Yes
0/500
Quantity
Reliable DIN rail-mounted temperature transmitter with universal input (thermocouple, RTD, mV, resistor) and isolated analog or digital outputs. Designed for seamless integration with PLC, DCS, and industrial automation systems. SIL 2 Rated with an extremely thin profile and high accuracy.

  • The DIN Mounted Temperature Transmitter is a versatile and high-accuracy solution for industrial temperature signal conditioning and transmission. Supporting thermocouple, RTD, mV, and resistor inputs, it provides flexible signal conversion to standard analog (4–20mA, 0–20mA, 0–5V, 1–5V, 0–10V) or digital RS485 MODBUS-RTU outputs, with full input-output-power isolation to ensure reliability in demanding environments.

    Engineered for easy DIN-35mm rail installation, this transmitter is available with or without an LCD display for local indication. With multiple I/O configurations (1 in/1 out, 1 in/2 out, 2 in/2 out), it is suitable for a wide range of monitoring and control applications. The rugged design supports independent DC or AC power supply, making it ideal for PLC, DCS, and automation systems in process control, manufacturing, and building management.

    Key Features

    • Universal programmable inputs: Thermocouple, RTD, resistor, mV

    • Multiple output options: 4–20mA, 0–20mA, 0–5V, 1–5V, 0–10V, relay, RS485 MODBUS-RTU

    • High accuracy: ±(0.2%FS +1 digit)

    • Input-output-power isolation: 1.5KVrms, 1min, 50Hz

    • Transmission stability: Temperature shift ≤ 0.0075%FS/°C

    • Compact DIN rail design with pluggable terminals

    • Optional LCD indicator for real-time display

    • Independent power supply: 20–32VDC or AC100–260VAC

    • Size: 109×116.5×18.5mm

  • .Input type Thermocouple, RTD, mV, Resistor Input Type Measured Range
    . Output Signal 4-20mA, 0-10mA, 0-20mA; RTD Pt100 -200 to 800℃
      0-5VDC, 1-5VDC, 0-10VDC CU50 -50 to150℃
    Resistor Load (mA output) RL≤550Ω (4-20, 0-10, 0-20mA) CU100 -50 to150℃
    Resistor Load (Vdc output) RL≥250kΩ (1-5VDC, 0-5VDC) CU53* -50 to 150.0℃
    Resistor Load (Vdc output) RL≥500kΩ (0-10VDC) ,customized BA1 -200 to 600.0℃
    Relay Output 0.6A/125VAC, 2A/30VDC BA2 -200 to 600.0℃
    .RS485 Output MODBUS-RTU Protocol T.C K -200 to 1300℃
    Communication rate 9.6Kbps T -200 to 400℃
    Communication distance max.1km E -200 to 1000℃
    . Accuracy 0.2FS%+1 digit J 0 to 1200℃
    Temperature shift 0.0075%FS/℃ N 0 to 1300℃
    Resolution 0.1℃ R 0 to 1600℃
    Response time 1channel: ＜0.5, 2 Channels: ＜1S  S 0 to 1600℃
    Isolated ability Input-output-power 1.5KV, 1min, 50Hz B 400 to 1800℃
    Insulation resistance Input-output-power≥100mA at 500VDC Wre3-25 0-2300℃
    Power supply AC100-265V (50-60HZ); DC24V(+-10%) Wre5-26 0-2300℃
    Power Consumption ≤3W F2* 700-2000℃
    Case material/IP Protection PC/IP20



    Resistor

    		 Linear 0-400Ω
    Size 116.5Xx109x18.5mm Remote 30-350Ω
    Mounting DIN35mm Remote* 0-350Ω
    N.W. 140g



    mV

    		 0-20mV 0-20mV
    EMC GB/T18268 industrial application (IEC61326-1) 0-40mV 0-40mV
    Working temperature -10 to 50℃; 0-100mV 0-100mV
    Relative Humidity 25% to 85%RH -20 to 20mV* -20 to 20mV
    Storage temperature -10 to 60℃ (No dew) -100 to 100mV* -100-100mV
