Advanced Portable Digital Ultrasonic Flaw Detector – High Accuray
Reliable and economical ultrasonic flaw detection with advanced features including real-time A/B-scan, auto-calibration, waveform recording, and high-speed USB data export – all in a compact, handheld design.
Set Includes:
- 1x Portable Ultrasonic Flaw Detector w/ multi-color TFT LCD Display

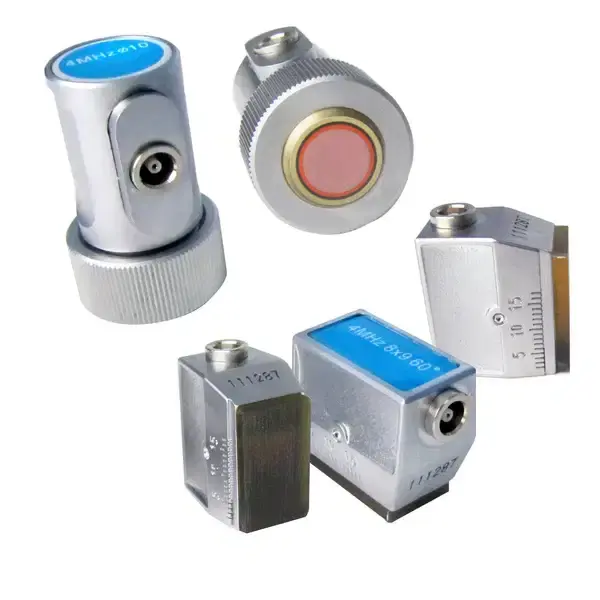

- 1 x Straight Beam Transducer (4 MHz, φ10)
- 1 x Angle Beam Transducer (4 MHz, 8mm x 9mm, 60°)
- 1 x Interconnect Cable for the transducer -- choose 1 in either Q9-C5 or optional the C9- C5 (please inform us on your preferred cable when placing order)
- 1 x Rechargeable Li-Ion Battery Package, 8.8 amp hour (installed)
- 1 x Power Supply/Charger unit (available in US / UK / AU / EU plug)
- 2 x Supporting Pillars
- 1 x Operating Manual in English
- 1 x Sturdy and Protective Carrying Case (With rubber padding - Shock absorbent design)
- 1 x Data pro software for MFD instrument
- 1 x USB cable
- Guarantee Card
- Product Certificate
- Packing Card
Product Description
Specifications
The Advanced Portable Digital Ultrasonic Flaw Detector is a practical and cost-effective solution for precise non-destructive testing (NDT). Designed for reliability and ease of use, it integrates powerful flaw detection capabilities, automatic calibration, real-time signal analysis, and extensive data storage.
This compact instrument is engineered with a digital multi-color TFT LCD (320×240 pixels), high-speed USB 2.0 communication, and intelligent signal processing. It features a built-in mini-processor for efficient performance control, and supports both online and offline charging modes. Its lithium-ion battery module allows for up to 8 hours of continuous operation – ideal for demanding fieldwork.
Whether you're testing welds, axles, billets, shafts, tanks, turbines, or structural components, this flaw detector ensures accurate crack detection, sizing, and documentation with professional-level functionality in a lightweight, handheld package.
Applications:
-
NDT inspection of welds, forgings, shafts, billets, pipelines
-
Crack, void, and discontinuity detection in pressure vessels and structural components
-
Industrial quality assurance in fabrication, aerospace, petrochemical, and mechanical sectors
Key Features:
-
📁 Large Memory Storage – Save up to 100 calibration channels and 1000 A-scan waveforms
-
📐 Dual Gate System – Two fully independent measurement gates with adjustable parameters
-
⚙️ Semi-Automatic 2-Point Calibration – Fast zero offset and velocity calibration
-
📊 Advanced Flaw Evaluation – Supports both DAC and AVG methods with real-time amplitude and distance analysis
-
🔍 Signal Processing Tools – Magnify gate, envelope display, peak hold, auto gain, and freeze functions
-
🧠 Real-Time A/B Scan – High-speed waveform display at 60 Hz update rate
-
💾 USB Data Transfer – Export and manage inspection data via DataPro software
-
🔋 Long-Lasting Battery – Up to 8+ hours runtime with secure, detachable lithium-ion battery
-
🎥 Video Recording – Play back inspection sessions with ease
-
🌈 Customizable Display – Selectable wave and background colors with 4 brightness levels
-
🔁 Curved Surface Correction – Plus crack height measurement and weld profiling features
-
📆 Real-Time Clock & Live Screen Capture – Supports inspection logs and data tracking
-
🛠️ Compact & Portable – Lightweight, rugged body with ergonomic grip and rotary knob control
Included in the Set:
-
Flaw Detector Unit
-

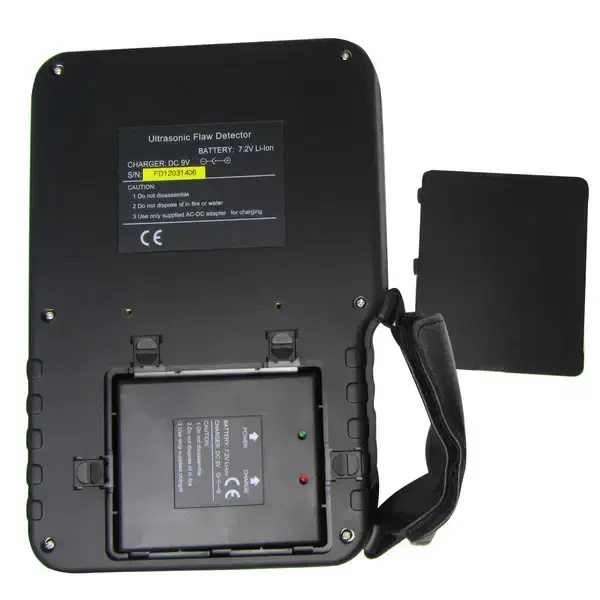

Rechargeable Battery Module
-
USB Cable & Charger
-
Protective Case
-
User Manual
-
Warranty Certificate
